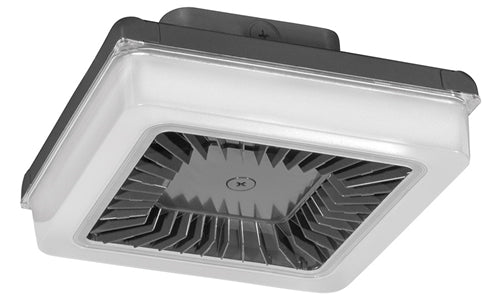

RAB PRT30 30W LED PORTO Garage Light, No Photocell, 5000K (Cool), 3455 Lumens, 74 CRI, 120V-277V, Standard, Bronze Finish

Field Adjustable Light Output:

Suitable for wet locations

Ingress protection rating of IP65 for dust and water

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

55W: Constant Current, Class 1, 50/60 Hz, 120V-277V, 120V: 0.50A, 208V: 0.29A; 240V: 0.25A, 277V: 0.22A

Long-life, high-efficacy, surface-mount LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

55W: 4.26% at 120V, 11.58% at 277V

55W: 99.6% at 120V, 93.5% at 277V

Ringwave LN4kV/LN-GND 6kV

Yes

Yes

Integrated photocell included with on/off switch (factory default: off)

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

High-temperature silicone

Die-cast aluminum

Polycarbonate lens

Polycarbonate

Mercury and UV free. RoHS-compliant components.

Formulated for high durability and long-lasting color

Surface and pendant mounting

55W: B3 U4 G4

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
