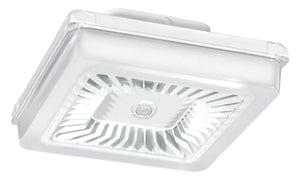

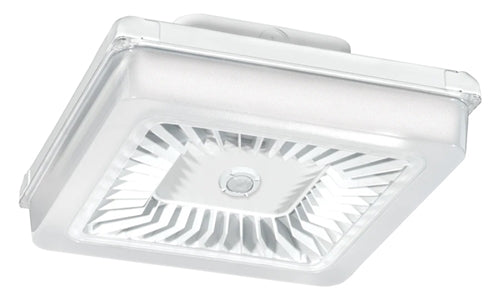

RAB PRT42W/WS 42W LED PORTO Garage Light, 5000K (Cool), 4833 Lumens, 74 CRI, 120V-277V, Multi Level Motion Sensor, White Finish

Suitable for wet locations

Ingress protection rating of IP66 for dust and water

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Constant Current, Class 2 100V - 277V, 50/60 Hz. THD <20%.

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

6.7% at 120V, 7.6% at 277V

99.3% at 120V, 97.7% at 277V

Frosted polycarbonate

High-temperature silicone

Suitable for use in up to 40°C (104°F)

Formulated for high durability and long-lasting color

The minimum starting temperature is -40°C (-40°F)

Superior thermal management with external "Air-Flow" fins

Die-cast aluminum backbox with (4) 1/2" conduit openings with plugs. Hinged tether for easy installation and wiring. Also accomodates 1/2" or 3/4" NPS pendants (provided by others).

Specular polycarbonate

Mercury and UV free. RoHS-compliant components.

Long-life, high-efficacy, surface-mount LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Equivalent to 150W Metal Halide

5 years limited warranty

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

120-277V

1W

50mA

High: 0-10V; Low: off, 0-9.8V

Amount of time in high mode with no motion before switching to low mode: 5 min., 1 -30 min.

Time in which the fixture will remain on low mode with no motion before turning off and waiting for new motion to turn on: None, 1 -60 min., 1 -5 hrs.

None, low, medium, maximum

None, 1 to 250 fc, auto

-40°F to 167°F (-40°C to +75°C)

20% to 90% noncondensing

200,000 cycles (120/277VAC), 50,000 cycles (230VAC)

Ingress protection rating of IP66 for dust and water

Suitable for Wet Locations as factory installed
