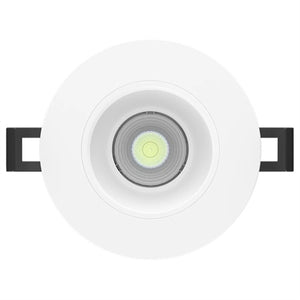

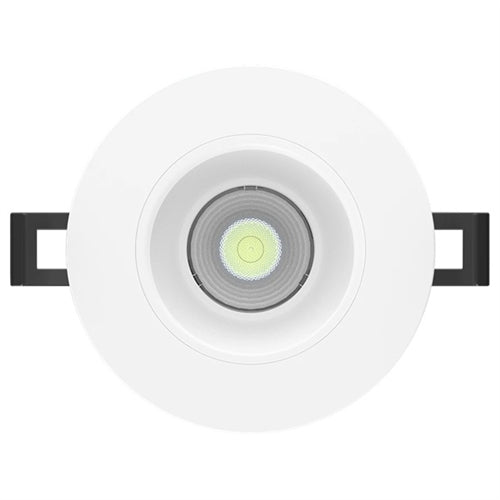

RAB R3-9 LED 2" Downlight Color Adjustable, 2700/3000/3500/4000/5000K, 800 lumens, White
RAB R3-9 LED 2" Downlight Color Adjustable, 2700/3000/3500/4000/5000K, 800 lumens, White
Regular price
Price:
$36.68
Regular price
Price:
Sale price
$36.68
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Performance | |
|
Product Type
|
Recessed Downlights
|
|
Description
|
Remote driver downlights
are great for new construction and retrofit applications. Downlights provide
small-aperture aesthetic, available in recessed, deep recessed and gimbal
models in 2", 3", and 4" sizes.
|
|
Wattage Equivalency
|
65W Incandescent
|
|
Input Wattage
|
9W
|
|
Lumens
|
2700K @ 658lm; 3000K @
703lm; 3500K @ 743lm; 4000K @ 763lm; 5000K @ 781lm
|
|
Efficacy
|
2700K @ 77lm/W; 3000K @
84lm/W: 3500K @ 90lm/W; 4000K @ 92lm/W; 5000K @ 91lm/W
|
|
L70 Lifespan
|
50,000-Hour LED lifespan
based on IES LM-70 results
|
|
Electrical
|
|
|
Driver
|
Constant Current, Class
2, 60 Hz, 120V 0.08A
|
|
THD
|
≤25%
|
|
Power Factor
|
≥0.9
|
|
Dimmable
|
Yes, dims down to 10% on
compatible TRIAC/ELV systems. See Dimmer Compatibility List on
rablighting.com.
|
|
Input Voltage
|
120V
|
|
Operating Frequency
|
60 Hz
|
|
Input Current @ 120V (mA)
|
77mA
|
|
Operating Temperature
|
-13°F to 104°F (-25°C to
40°C)
|
|
MBCP
|
1,520
|
|
Flicker
|
≤30%
|
|
LED
Characteristics
|
|
|
Beam Angle
|
38°±5°
|
|
Color Temperature
|
Field adjustable via dip
switch 2700/3000/3500/4000/5000K
|
|
Color Accuracy (CRI)
|
>90 CRI
|
|
R9 Value
|
High color performance
with R9 greater than or equal to 50
|
|
Color Consistency
|
4-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is
warrantied to shift no more than 200K in color temperature over a 5-year
period
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Installation
|
|
|
Mounting
|
Recessed, no housing
required
|
|
Construction
|
|
|
Size
|
2"
|
|
Shape
|
Round
|
|
Finish
|
White
|
|
Enclosure Material
|
Metal
|
|
Trim Style
|
Smooth
|
|
Lens
|
Polycarbonate light
diffuser distributes light evenly and smoothly for general lighting
applications
|
|
Air Tight
|
Housing certified Air
Tight as per ASTM-E283
|
|
Compliance
|
|
|
Listings
|
ETL Listed
|
|
Environment
|
Suitable for use in dry,
damp, and wet environments.
|
|
IC Rated
|
Suitable for direct
contact with insulation. Type IC inherently protected, suitable for direct
contact to air permeable insulation and cULus listed for damp locations. Not
for use in direct contact with spray foam insulation, consult NEMA
LSD57-2013.
|
|
Energy Star Approved
|
This product is ENERGY
STAR® Version 2.2 Certified.
|
|
Certification Model
Number
|
DLR0137(R3-9)
|
|
T20 Compliant
|
No, this product does not
meet California Title 20 requirements.
|
|
California Title 24 JA8
Compliant
|
Can be used to conform
with the requirements of California Title 24 Part 6
|
|
California Energy
Commission (CEC) Status
|
Lawful for Sales in
California
|
|
NEC Compliant
|
Suitable for use in
closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
RoHS
|
Mercury and UV free.
RoHS-compliant components.
|
|
FCC
|
Complies with Part 15B of
the FCC Rules
|
|
Energy Star ID
|
3554327
|
|
Other
|
|
|
5-Year, No-Compromise
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of five (5) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish. RAB's warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
