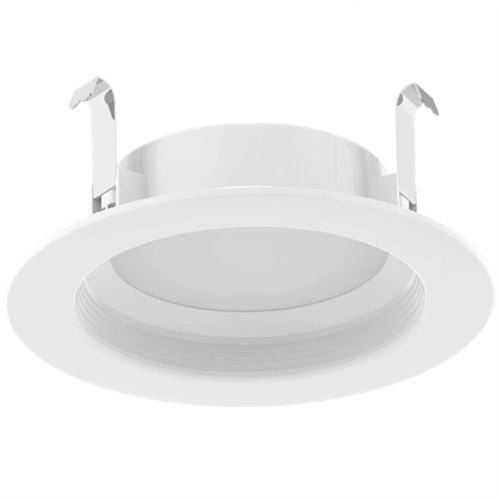

RAB R34-4B 7W 4" LED Retrofit Downlight, 2700K-5000K, 700 Lumens, 90 CRI, Baffle, White Finish
RAB R34-4B 7W 4" LED Retrofit Downlight, 2700K-5000K, 700 Lumens, 90 CRI, Baffle, White Finish
Regular price
Price:
$11.00
Regular price
Price:
Sale price
$11.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Performance | |
|
Product Type
|
Recessed Retrofit
|
|
Description
|
Economical recessed
retrofit, ideal for applications with more economical needs. Five field
adjustable color temperatures to quickly and easily choose from.
|
|
Wattage Equivalency
|
60W Incandescent
|
|
Input Wattage
|
7.5W
|
|
Lumens
|
2700K @ 726lm; 3000K @
738lm; 3500K @ 742lm; 4000K @ 721lm; 5000K @ 712lm
|
|
Efficacy
|
2700K @ 97lm/W; 3000K @
98lm/W; 3500K @ 99lm/W; 4000K @ 96lm/W; 5000K @ 95lm/W
|
|
L70 Lifespan
|
50,000-Hour LED lifespan
based on IES LM-70 results
|
|
Electrical
|
|
|
Driver
|
Constant Current, 60 Hz,
120V, 120V: 0.08A
|
|
Power Factor
|
≥0.7
|
|
Dimmable
|
Yes, dimmable down to 10%
on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
|
|
Input Voltage
|
120V
|
|
Operating Frequency
|
60 Hz
|
|
Input Current @ 120V (mA)
|
80mA
|
|
Operating Temperature
|
-13°C to 104°F (-25°C to
40°C)
|
|
Flicker
|
≤30%
|
|
LED
Characteristics
|
|
|
Beam Angle
|
90°
|
|
Color Temperature
|
Field adjustable via dip
switch 2700/3000/3500/4000/5000K
|
|
Color Accuracy (CRI)
|
>90 CRI
|
|
R9 Value
|
High color performance
with R9 greater than or equal to 50
|
|
Color Consistency
|
4-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is
warrantied to shift no more than 200K in color temperature over a 5-year
period
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Installation
|
|
|
Mounting
|
Recessed Housing
|
|
Base Type
|
E26 Edison
|
|
Construction
|
|
|
Size
|
4"
|
|
Shape
|
Round
|
|
Enclosure Material
|
Plastic
|
|
Trim Style
|
Baffle
|
|
Lens
|
Polycarbonate light
diffuser distributes light evenly and smoothly for general lighting
applications
|
|
Cut Out Template Size
|
4 5/16"
|
|
Compliance
|
|
|
Listings
|
UL Classified
|
|
Environment
|
Suitable for use in dry,
damp, and wet environments.
|
|
UV Rated
|
Suitable for exposure to
direct sunlight
|
|
IC Rated
|
No
|
|
Air Tight
|
No
|
|
Certification Model
Number
|
DLR0142(R34-4B)
|
|
T20 Compliant
|
Can be used to conform
with the requirements of California Title 20
|
|
California Title 24 JA8
Compliant
|
No
|
|
California Energy
Commission (CEC) Status
|
Lawful for Sales in
California
|
|
NEC Compliant
|
Suitable for use in
closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
RoHS Compliant
|
Mercury and UV free.
RoHS-compliant components.
|
|
FCC
|
Complies with Part 15 of
the FCC Rules
|
|
Energy Star Approved
|
ENERGY STAR Version 1.0
Certified
|
|
Other
|
|
|
Accessories
|
|
| 4" Brushed nickel trim round baffle | |
| DLTRIM/R4RB-BRZ-L | 4" Bronze trim round baffle |
| DLTRIM/R4RB-B-L | 4" Black trim round baffle |
| NDCANIC4R | 4" New construction housing |
| RDCANIC4R | 4" Retrofit housing |
|
Warranty
|
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty. |
