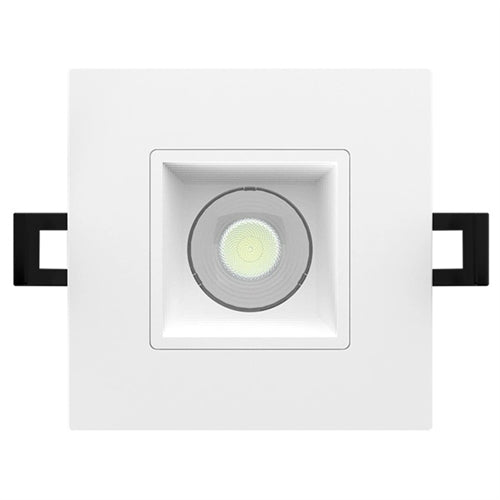

RAB R3S-9B 9W 3" New Construction and Retrofit Square LED Deep Recessed Downlight, Adjustable CCT 2700/3000/3500/4000/5000K, 90 CRI, Baffle Trim, White

Recessed Downlights

Remote driver downlights are great for new construction and retrofit applications. Downlights provide small-aperture aesthetic, available in recessed, deep recessed and gimbal models in 2", 3", and 4" sizes.

65W Incandescent

9W

2700K @ 634lm; 3000K @ 676lm; 3500K @ 716lm; 4000K @ 736lm; 5000K @ 752lm

2700K @ 74lm/W; 3000K @ 80lm/W: 3500K @ 87lm/W; 4000K @ 89lm/W; 5000K @ 88lm/W

50,000-Hour LED lifespan based on IES LM-70 results

Constant Current, Class 2, 60 Hz, 120V 0.08A

≤25%

≥0.9

Yes, dims down to 10% on compatible TRIAC/ELV systems. See Dimmer Compatibility List on rablighting.com.

120V

60 Hz

77mA

-13°C to 104°F (-25°C to 40°C)

1,395

≤30%

38°±5°

Field adjustable via dip switch 2700/3000/3500/4000/5000K

>90 CRI

High color performance with R9 greater than or equal to 50

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Recessed, no housing required

3"

Square

White

Metal

Baffle

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

ETL Listed

Housing certified Air Tight as per ASTM E283

Suitable for use in dry, damp, and wet environments.

Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

This product is ENERGY STAR® Version 2.2 Certified.

DLR0139(R3S-9B)

No, this product does not meet California Title 20 requirements.

Can be used to conform with the requirements of California Title 24 Part 6

Lawful for Sales in California

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Mercury and UV free. RoHS-compliant components.

Complies with Part 15B of the FCC Rules

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
