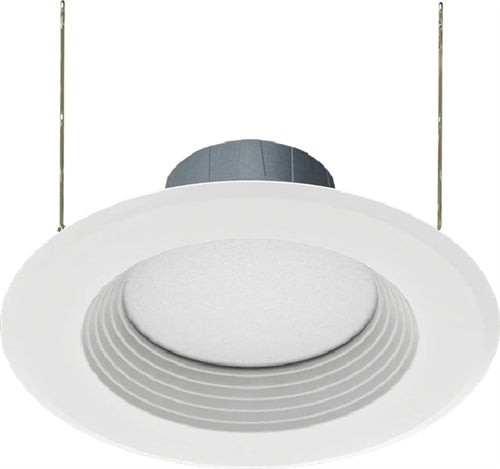

Home > RAB Lighting > RAB R6R11835120WB 11W 6" LED Round Retrofit Downlight, Baffle, 1158 lumens, 80 CRI, 3500K Color Temperature, White

description
| Compliance | |
|
UL Classified
|
Suitable for wet
locations
|
|
Energy Star Approved
|
ENERGY STAR Version 2.2
Certified
|
|
Certification Model
Number
|
DLR0011
|
|
Energy Star ID
|
2350095
|
|
NEC Compliant
|
Suitable for use in
closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).
|
|
Electrical
|
|
|
Dimming Driver
|
|
|
THD
|
<20%
|
|
Power Factor
|
≥0.9
|
|
THDi
|
Produces less than 20%
THD
|
|
PF
|
≥0.9
|
|
Input Voltage
|
120V
|
|
Operating Frequency (Hz)
|
60Hz
|
|
Performance
|
|
|
Lifespan
|
50,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
85W Incandescent
|
|
Construction
|
|
|
Shape
|
Round
|
|
Trim Style
|
Baffle
|
|
Housing
|
Constructed from durable
steel sheet metal
|
|
Cold Weather Starting
|
The minimum starting
temperature is -30°C (-22°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Lens
|
Frosted polycarbonate
diffusion lens. Regressed lens. Constructed from durable sheet metal
construction.
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Socket Adapter
|
Edison 26 Medium Base
Socket adapter included in box
|
|
Finish
|
Matte White
|
|
LED
Characteristics
|
|
|
Beam Angle
|
95°±10°
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Flicker
|
Silent and flicker free
operations of less than 30%
|
|
Installation
|
|
|
Mounting
|
Easy installation with
friction clips (4") and torsion springs (5"/6")
|
|
Other
|
|
|
Compatibility
|
Compatible with most
5" and 6" recessed housings
|
|
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of five (5) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish. RAB's warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
