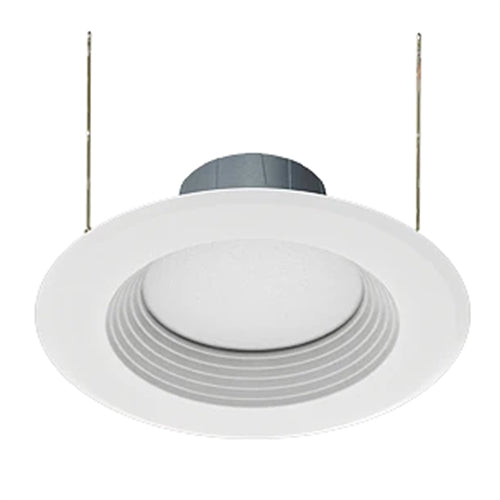

RAB R6R119FA120WB 11W 6 inch LED Retrofit Downlight, 2700K, 3000K, 3500K, 4000K, & 5000K, 922 Lumens, 92 CRI, White Baffle White Ring
RAB R6R119FA120WB 11W 6 inch LED Retrofit Downlight, 2700K, 3000K, 3500K, 4000K, & 5000K, 922 Lumens, 92 CRI, White Baffle White Ring
Regular price
Price:
$16.25
Regular price
Price:
Sale price
$16.25
Unit price
per
MODEL: RAB-R6R119FA120WB
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
| Compliance | |
|
UL Classified
|
Suitable for wet
locations
|
|
ENERGY STAR V2.2
|
ENERGY STAR® Version 2.2
Certified
|
|
Energy Star Model Number
|
DLR0035
|
|
Energy Star ID
|
2350098
|
|
NEC Compliant
|
Suitable for use in
closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).
|
|
California Title 24
|
Can be used to conform
with the requirements of California Title 24 Part 6.
|
|
California Title 20
|
Compliant LED Product
|
|
Electrical
|
|
|
Dimming Driver
|
TRIAC compatible dimmer
with dimming as low as 5%.
|
|
THD
|
<20%
|
|
Power Factor
|
≥0.9
|
|
THDi
|
Produces less than 20%
THD
|
|
PF
|
≥0.9
|
|
Input Voltage
|
120V
|
|
Operating Frequency (Hz)
|
60Hz
|
|
Performance
|
|
|
Lifespan
|
50,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
75W Incandescent
|
|
Construction
|
|
|
Shape
|
Round
|
|
Trim Style
|
Baffle Trim
|
|
Housing
|
Constructed from durable
steel sheet metal
|
|
Cold Weather Starting
|
The minimum starting
temperature is -30°C (-22°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Lens
|
Frosted polycarbonate
diffusion lens
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Mounting
|
Easy installation with
friction clips (4") and torsion springs (5"/6")
|
|
Socket Adapter
|
Edison 26 Medium Base
Socket adapter included in box
|
|
Compatibility
|
Compatible with most
5" and 6" recessed housings
|
|
Finish
|
Matte White
|
|
Optical
|
|
|
Beam Angle
|
95°±10°
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
R9 Value
|
High color performance
with R9 greater than or equal to 50
|
|
Flicker
|
Silent and flicker free
operations of less than 30%
|
|
Other
|
|
|
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of five (5) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish.
|
