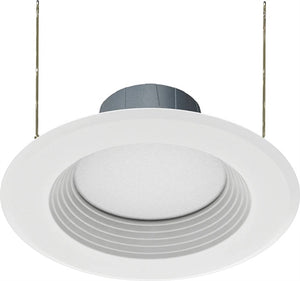

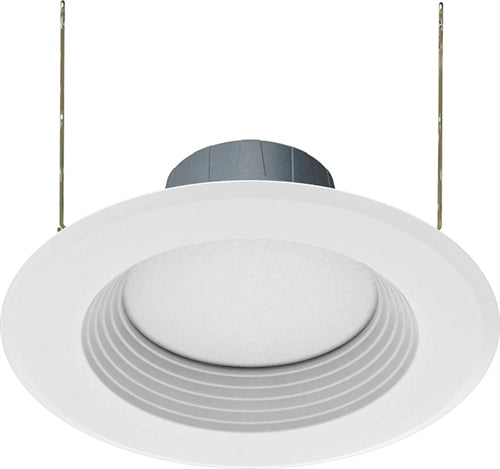

RAB R6R8927120WB 8W 6 inch LED Retrofit Downlight, 2700K, 735 Lumens, 92 CRI, White Baffle, White Finish
RAB R6R8927120WB 8W 6 inch LED Retrofit Downlight, 2700K, 735 Lumens, 92 CRI, White Baffle, White Finish
Regular price
Price:
$10.80
Regular price
Price:
Sale price
$10.80
Unit price
per
MODEL: RAB-R6R8927120WB
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
| Compliance | |
|
UL Classified
|
Suitable for wet
locations
|
|
ENERGY STAR V2.2
|
ENERGY STAR® Version 2.2
Certified
|
|
Energy Star Model Number
|
DLR0021
|
|
Energy Star ID
|
2350014
|
|
NEC Compliant
|
Suitable for use in
closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).
|
|
California Title 24
|
Can be used to conform
with the requirements of California Title 24 Part 6.
|
|
California Title 20
|
Compliant LED Product
|
|
Electrical
|
|
|
Dimming Driver
|
TRIAC compatible dimmer
with dimming as low as 5%.
|
|
THD
|
<20%
|
|
Power Factor
|
≥0.9
|
|
THDi
|
Produces less than 20%
THD
|
|
PF
|
≥0.9
|
|
Input Voltage
|
120V
|
|
Operating Frequency (Hz)
|
60Hz
|
|
Performance
|
|
|
Lifespan
|
50,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
65W Incandescent
|
|
Construction
|
|
|
Shape
|
Round
|
|
Trim Style
|
Baffle Trim
|
|
Housing
|
Constructed from durable
steel sheet metal
|
|
Cold Weather Starting
|
The minimum starting
temperature is -30°C (-22°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Lens
|
Frosted polycarbonate
diffusion lens. Regressed lens. Constructed from durable sheet metal
construction.
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Mounting
|
Easy installation with
friction clips (4") and torsion springs (5"/6")
|
|
Socket Adapter
|
Edison 26 Medium Base
Socket adapter included in box
|
|
Compatibility
|
Compatible with most
5" and 6" recessed housings
|
|
Finish
|
Matte White
|
|
Optical
|
|
|
Beam Angle
|
95°±10°
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
R9 Value
|
High color performance
with R9 greater than or equal to 50
|
|
Flicker
|
Silent and flicker free
operations of less than 30%
|
|
Other
|
|
|
Warranty
|
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty. |
|
Buy American Act
Compliance
|
RAB values USA
manufacturing! Upon request, RAB may be able to manufacture this product to
be compliant with the Buy American Act (BAA). Please contact customer service
to request a quote for the product to be made BAA compliant.
|
