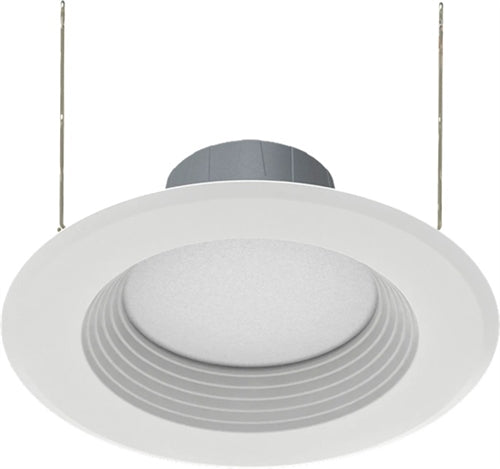

RAB R6R89FA120WB 8W 6" LED Round Retrofit Downlight Baffle, Adjustable Head, 2700K, 3000K, 3500K, 4000K & 5000K Color Temperature
RAB R6R89FA120WB 8W 6" LED Round Retrofit Downlight Baffle, Adjustable Head, 2700K, 3000K, 3500K, 4000K & 5000K Color Temperature
Regular price
Price:
$13.00
Regular price
Price:
Sale price
$13.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Performance | |
|
Product Type
|
LED Trim - Metal
|
|
Description
|
Contractor-grade retrofit
downlights offered with up to 5 field selectable color temperatures in 1
model. Options available with a smooth or baffle trim.
|
|
Wattage Equivalency
|
65W Incandescent
|
|
Input Wattage
|
8W
|
|
Lumens
|
770lm
|
|
Lumens (Measured)
|
2700K: 748lm
|
| 3000K: 762lm | |
| 3500K: 776lm | |
| 4000K: 773lm | |
| 5000K: 759lm | |
|
Efficacy
|
96lm/W
|
|
L70 Lifespan
|
50,000-Hour LED lifespan
based on IES LM-70 results
|
|
Electrical
|
|
|
Driver
|
Constant Current
|
|
THD
|
≤20%
|
|
Power Factor
|
≥0.9
|
|
Dimmable
|
Yes, dimmable down to 10%
on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
|
|
Input Voltage
|
120V
|
|
Operating Frequency
|
60 Hz
|
|
Input Current @ 120V (mA)
|
70mA
|
|
Operating Temperature
|
-22°F to 104°F (-30°C to
40°C)
|
|
Flicker
|
≤30%
|
|
LED
Characteristics
|
|
|
Beam Angle
|
95°±10°
|
|
Color Temperature
|
Field-adjustable via dip
switch 2700/3000/3500/4000/5000K
|
|
Color Accuracy (CRI)
|
≥90
|
|
R9 Value
|
High color performance
with R9 greater than 50
|
|
Color Consistency
|
<4-step MacAdam
Ellipse binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is
warrantied to Shift no more than 200K in color temperature over a 5-year
period
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Installation
|
|
|
Mounting
|
Recessed with housing
|
|
Construction
|
|
|

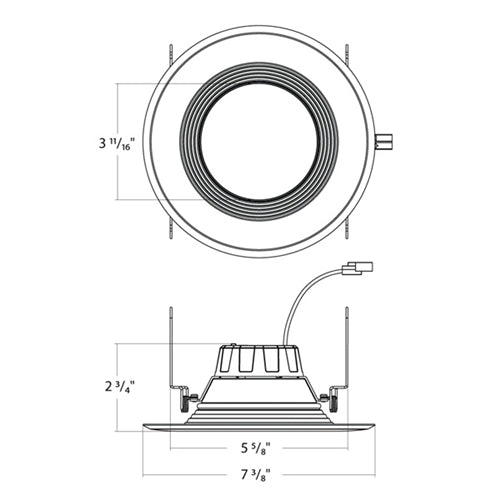

Size
|
6"
|
|
Shape
|
Round
|
|
Finish
|
White
|
|
Material
|
Constructed from spun
aluminum
|
|
Trim Style
|
Smooth Splay
|
|
Lens Finish
|
Frosted
|
|
Lens
|
Smooth flat profile
polycarbonate lens diffuser
|
|
Compliance
|
|
|
Listings
|
UL Classified, UL
Recognized
|
|
Environment
|
Suitable for use indoors
and outdoors in dry, damp, or wet environments.
|
|
IC Rated
|
Depends on recessed
housing used
|
|
Air Tight
|
No
|
|
Energy Star Approved
|
This product is ENERGY
STAR® Certified.
|
|
Certification Model
Number
|
DLR0122(R6R89FA120WS)
|
|
California Title 20
Compliant
|
Can be used to conform
with the requirements of California Title 20
|
|
California Title 24 JA8
Compliant
|
Can be used to conform
with the requirements of California Title 24 Part 6.
|
|
California Energy
Commission (CEC) Status
|
Lawful for Sales in
California
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
RoHS
|
Mercury and UV free.
RoHS-compliant components.
|
|
FCC
|
Complies with Part 15 of
the FCC Rules
|
|
Other
|
|
|
Compatible Accessories
|
NDCANIC6R
|
| 6" Recessed housing, new construction | |
| RDCANIC6R | |
| 6" Recessed housing, remodeler | |
| DLTRIM/R6RS-BN | |
| 6" Color trim round smooth brushed nickel | |
| DLTRIM/R6RS-BRZ | |
| 6" Color trim round smooth bronze | |
| DLTRIM/R6RS-B | |
| 6" Color trim round smooth black | |
|
5-Year, No-Compromise
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of five (5) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish. RAB's warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
