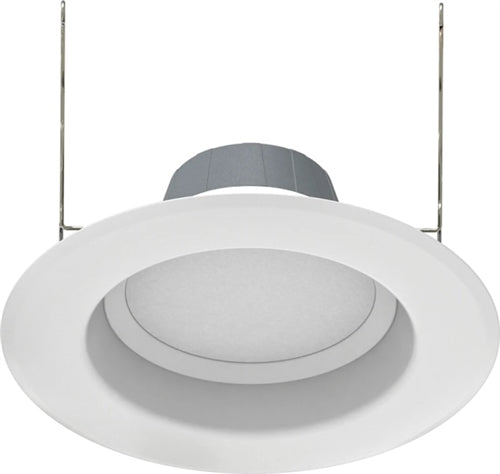

RAB R6R89FA120WS 8W 6" LED Round Retrofit Downlight, Adjustable Head, 2700K, 3000K, 3500K, 4000K & 5000K Color Temperature
RAB R6R89FA120WS 8W 6" LED Round Retrofit Downlight, Adjustable Head, 2700K, 3000K, 3500K, 4000K & 5000K Color Temperature
Regular price
Price:
$12.85
Regular price
Price:
Sale price
$12.85
Unit price
per
MODEL: RAB-R6R89FA120WS
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
| Performance | |
|
Product Type
|
Recessed Retrofit
|
|
Description
|
Contractor-grade retrofit
downlights offered with up to 5 field selectable color temperatures in 1
model.
|
|
Wattage Equivalency
|
65W Incandescent
|
|
Input Wattage
|
8W
|
|
Lumens
|
2700K @ 738lm; 3000K @
750lm; 3500K @ 761lm; 4000K @ 783lm; 5000K @ 793lm
|
|
Efficacy
|
2700K @ 96lm/W; 3000K @
98lm/W; 3500K @ 100lm/W; 4000K @ 100lm/W; 5000K @ 105lm/W
|
|
L70 Lifespan
|
50,000-Hour LED lifespan
based on IES LM-70 results
|
|
Electrical
|
|
|
Driver
|
Constant Current, 60 Hz,
120V, 120V: 0.07 A
|
|
THD
|
≤20%
|
|
Power Factor
|
≥0.9
|
|
Dimmable
|
Yes, dims down to 10% on
compatible TRIAC/ELV system.
|
|
Dimmable
|
See Dimmer Compatibility List. |
|
Input Voltage
|
120V
|
|
Operating Frequency
|
60 Hz
|
|
Input Current @ 120V (mA)
|
70mA
|
|
Operating Temperature
|
-22°F to 104°F (-30°C to
40°C)
|
|
LED
Characteristics
|
|
|
Color Temperature
|
Field adjustable via dip
switch 2700K/3000K/3500K/4000K/5000K
|
|
Color Accuracy (CRI)
|
>90 CRI
|
|
R9 Value
|
High color performance
with R9 greater than or equal to 50
|
|
Color Consistency
|
<4-step MacAdam
Ellipse binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is
warrantied to shift no more than 200K in color temperature over a 5-year
period
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Installation
|
|
|
Mounting
|
Recessed Housing
|
|
Construction
|
|
|
Size
|
6"
|
|
Shape
|
Round
|
|
Finish
|
White
|
|
Enclosure Material
|
Metal
|
|
Trim Style
|
Smooth
|
|
Lens
|
Polycarbonate light
diffuser distributes light evenly and smoothly for general lighting
applications
|
|
Cut Out Template Size
|
6 5/16"
|
|
Compliance
|
|
|
Listings
|
UL Recognized, UL
Classified
|
|
Environment
|
Suitable for use in dry,
damp, and wet environments.
|
|
IC Rated
|
No
|
|
Air Tight
|
No
|
|
Energy Star Approved
|
This product is ENERGY
STAR® Version 2.2 Certified
|
|
Energy Star ID
|
2369133
|
|
DLC Listed
|
No
|
|
Certification Model
Number
|
DLR0122(R6R89FA120WS)
|
|
T20 Compliant
|
Can be used to conform
with the requirements of California Title 20
|
|
California Title 24 JA8
Compliant
|
Can be used to conform
with the requirements of California Title 24 Part 6
|
|
California Energy
Commission (CEC) Status
|
Lawful for Sales in
California
|
|
NEC Compliant
|
Suitable for use in
closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
RoHS
|
Mercury and UV free.
RoHS-compliant components.
|
|
FCC
|
Complies with Part 15B of
the FCC Rules
|
|
Warranty
|
5 years limited warranty
|
|
Note
|
All values are typical
(tolerance +/- 10%)
|
