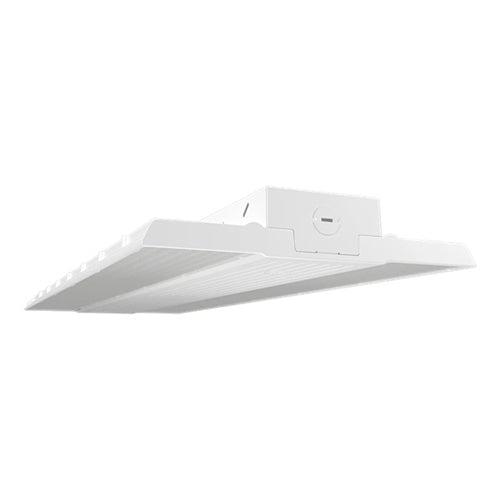

RAB RBAY17L 400/320/260W Field Adjustable High Bay, 3500/4000/5000K, White
RAB RBAY17L 400/320/260W Field Adjustable High Bay, 3500/4000/5000K, White
Regular price
Price:
$552.75
Regular price
Price:
Sale price
$552.75
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 400W/320W/260W (factory default 400W) | |
| Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for damp
locations
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
IP20
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
| DLC Product Code: S-7C523X | |
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
discrete, surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
1000W Metal Halide
|
|
Electrical
|
|
|
Driver
|
400W: Constant Current,
Class 1, 120-277V, 50/60Hz, 120V: 3.42A, 208V: 1.92A, 240V: 1.67A, 277V 1.45A
|
| 320W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.66A, 208V: 1.54A, 240V: 1.33A, 277V 1.16A | |
| 260W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.20A, 208V: 1.25A, 240V: 1.08A, 277V 0.94A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
4.86% at 120V, 11.2% at
277V
|
|
Power Factor
|
99.75% at 120V, 93.84% at
277V
|
|
Surge Protection
|
L-N: 6 kV
|
|
Surge Protection
|
L/N-GND: 6 kV |
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -20°C (-4°F)
|
|
Ambient Temperature
|
Max Power Temp Rating:
122°F ( 50°C)
|
| Middle Power Temp Rating: 56°C (133°F) | |
| Low Power Temp Rating: 140°F(60°C) | |
|
Lens
|
Polycarbonate lens
|
|
Reflector
|
Polycarbonate
|
|
Housing
|
Die-cast aluminum
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Installation
|
|
|
Mounting
|
Comes standard with
V-hooks for chain mounting. Accessories available for pendant and surface
mounting (purchased separately).
|
|
Sensor
Settings
|
|
|
Remote Control Accessory
|
Adjust settings using
remote control (catalog# MSR1). Only available with 0-10V dimming driver
options. Remote control available here.
|
|
Other
|
|
|
5-Year Limited Warranty
|
The RAB 5-year, limited
warranty covers light output, driver performance and paint finish. RAB's
warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
