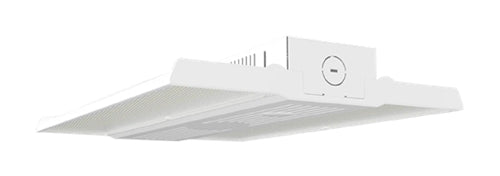

RAB RBAY17S 130/100/80W Field Adjustable LED High Bay, Adjustable Color Temperature 3500/4000/5000K, 12,506-19,432 Lumens, 82-85 CRI

Field Adjustable Light Output:

Suitable for damp locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP20

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Long-life, high-efficacy, discrete, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Equivalent to 400W Metal Halide

130W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.06A, 208V: 0.63A, 240V: 0.54A, 277V 0.47A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

5.01% at 120V, 8.0% at 277V

99.6% at 120V, 91.8% at 277V

L-N: 6kV

The minimum starting temperature is -20°C (-4°F)

Max Power Temp Rating: 50°C (122°F)

Polycarbonate lens

Polycarbonate

Die-cast aluminum

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Comes standard with V-hooks for chain mounting. Accessories available for pendant and surface mounting (purchased separately).

Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
