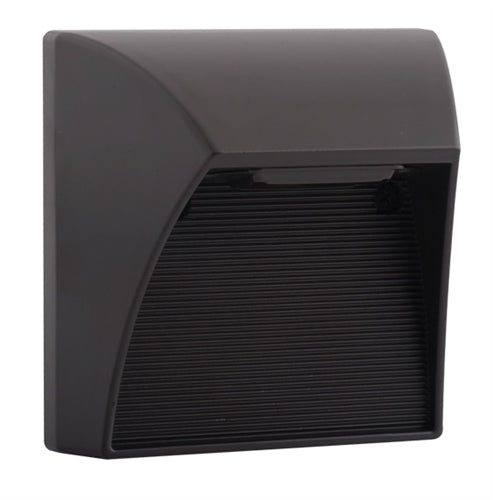

RAB SLED5 5W LED Square Step Lights, 5000K Color Temperature (Cool), 68 CRI, 100V - 240V, Bronze Finish

Description

Square LED Step Lights. Equivalent to 13 Watt CFL or 40 Watt incandescent. Applications for steps, decks, landscape and entries. Meets ADA requirements. 5 Year warranty.

Features and Benefits

• 5 Watt, High output LED
• 100,000 hour life
• Superior heat sinking with die cast aluminum housing
• Meets ADA Requirements
• Junction Box Not Included

• UL Listing:
  Suitable for wet locations. Suitable for mounting within 4ft. of the ground.
• IESNA LM-79 & IESNA LM-80 Testing:
  RAB LED luminaires have been tested by an independent laboratory in accordance with IESA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label.
• Dark Sky Approved:
  The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire.

• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency:
  7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Temperature (Nominal CCT):
  5000K.
• Color Accuracy:
  68 CRI

• Voltage:
  100V - 240V.
• Driver:
  4W high output long life LED. Driver Constant Current, Class 2, 50-60 Hz, 100-240 VAC 0.18 amps.
• Surge Protection:
  1000 Volts.

• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Thermal Management:
  Integral cast aluminum mounting pad for optimum heat sinking to ensure cool operation with maximum LED life and light output.
• Cold Weather Starting:
  The minimum starting temperature is -40°F/-40°C.
• Ambient Temperature:
  Suitable for use in 40°C (104°F) ambient temperatures.
• Green Technology:
  Mercury, Arsenic and UV free.
• Housing:
  Precision die cast aluminum housing and mounting plate (junction box not included).
• Gasket:
  High temperature silicone.
• For use on LEED Buildings:
  IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction.

• Lumen Maintenance:
  The LED will deliver 70% of its initial lumens at 100,000 hours of operation.

• Equivalency:
  The SLED5 is Equivalent in delivered lumens to a 13W CFL or 60W incandescent step light.
• HID Replacement Range:
  The SLED5 can be used to replace 13-26W CFL or 13-60W incandescent step lights based on delivered lumens.
• Patents:
  The design of the SLED Lights are protected by U.S. Pat. 612,975, Canada Pat. 133101, and China Pat. ZL201030129140.1.
• Country of Origin:
  Designed by RAB in New Jersey and assembled in Taiwan.
• Trade Agreements Act Compliant:
  This product is a product of Taiwan and a "designated country" end product that complies with the Trade Agreements Act.
• GSA Schedule:
  Suitable in accordance with FAR Subpart 25.4.
