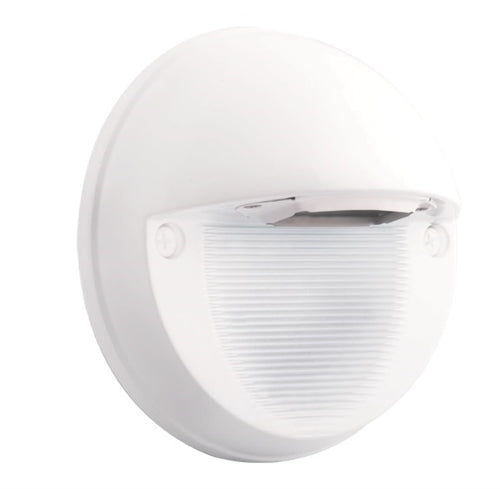

RAB SLEDR5YDCW 5W Solar LED Round Step Lights, 3000K Color Temperature (Warm), 87 CRI, 10-30V DC, White Finish

Description

Round LED Step Lights for solar applications or other 10-30VDC systems. Up to 85% more efficient than line voltage AC solutions. Available in 5W round shaped step lights.

• UL Listing:
  Suitable for wet locations. Suitable for mounting within 4ft. of the ground.
• IESNA LM-79 & IESNA LM-80 Testing:
  RAB LED luminaires have been tested by an independent laboratory in accordance with IESA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label.
• Dark Sky Approved:
  The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire.

• Electrical Input Specifications:
  Max Watts = 5.1W, Input Volts = 10-30V DC, Input Amps = 0.51 - 0.17A.
• Surge Protection:
  1000 Volts.

• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency:
  7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Temperature (Nominal CCT):
  3000K
• Color Accuracy:
  87 CRI

• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Thermal Management:
  Integral cast aluminum mounting pad for optimum heat sinking to ensure cool operation with maximum LED life and light output.
• Cold Weather Starting:
  The minimum starting temperature is -40°F/-40°C.
• Ambient Temperature:
  Suitable for use in 40°C (104°F) ambient temperatures.
• Green Technology:
  Mercury, Arsenic and UV free.
• Housing:
  Precision die cast aluminum housing and mounting plate (junction box not included).
• Gasket:
  High temperature silicone.
• For use on LEED Buildings:
  IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction.

• Lumen Maintenance:
  The LED will deliver 70% of its initial lumens at 100,000 hours of operation.

• Equivalency:
  The SLEDR5 is Equivalent in delivered lumens to a 13W CFL or 60W incandescent step light.
• HID Replacement Range:
  The SLEDR5 can be used to replace 13-26W CFL or 13-60W incandescent step lights based on delivered lumens.
• Patents:
  The design of the SLED Lights are protected by U.S. Pat. D612,974, CA Pat. 133100, and China Pat. ZL201030129138.4.
• Country of Origin:
  Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
• Buy American Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
• Recovery Act (ARRA) Compliant:
  This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
• Trade Agreements Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
• GSA Schedule:
  Suitable in accordance with FAR Subpart 25.4.
