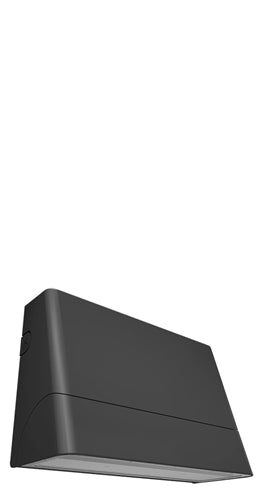

RAB SLIM22-L-150 Field Adjustable Slim LED Wallpack, 150/125/100/75W, 11462-21727 Lumens, 3000K/4000K/5000K, 80 CRI, Bronze Finish
RAB SLIM22-L-150 Field Adjustable Slim LED Wallpack, 150/125/100/75W, 11462-21727 Lumens, 3000K/4000K/5000K, 80 CRI, Bronze Finish
Regular price
Price:
$286.00
Regular price
Price:
Sale price
$286.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
|
45°, 30°, 15° and 0° (factory default 0°) |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 150W/125W/100W/75W (factory default 150W) | |
| Color Temperature Selectable: | |
| 3000K, 4000K and 5000K (factory default 4000K) | |
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
150W: Replaces up to 750W
Metal Halide (MH) or 400W High Pressure Sodium (HPS)
|
| 125W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS) | |
| 100W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS) | |
| 75W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS) | |
|
LED
Characteristics
|
|
|
LEDs
|
Edge-lit long-life,
high-efficacy, surface-mount LEDs; binned and mixed for uniform light output
and color.
|
|
Electrical
|
|
|
Driver
|
150W: Class 2, Constant
Current, 120-277V, 50/60 Hz, 120V: 1.41A, 208V: 0.84A, 240V: 0.76A, 277V:
0.68A
|
| 125W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 1.20A, 208V: 0.74A, 240V: 0.64A, 277V: 0.59A | |
| 100W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.94A, 208V: 0.60A, 240V: 0.54A, 277V: 0.50A | |
| 75W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.69A, 208V: 0.45A, 240V: 0.43A, 277V: 0.40A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
150W: 4.31% at 120V,
6.45% at 277V
|
| 125W: 4.3% at 120V, 6.76% at 277V | |
| 100W: 4.17% at 120V, 7.78% at 277V | |
| 75W: 4.4% at 120V, 9.89% at 277V | |
|
Power Factor
|
150W: 99.8% at 120V,
96.4% at 277V
|
| 125W: 99.8% at 120V, 95.6% at 277V | |
| 100W: 99.7% at 120V, 93.8% at 277V | |
| 75W: 99.5% at 120V, 89.9% at 277V | |
|
Aux Power Supply
|
Yes
|
|
Dim to Off
|
Yes
|
|
Photocell
|
120-277V selectable
photocell that can be turned on and off.
|
|
Surge Protection
|
DM(L/N): 6KV, CM(L/N-PE):
6KV
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°C (-40°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Housing
|
Die-cast aluminum
|
|
Lens
|
Polycarbonate lens
|
|
Gaskets
|
High-temperature silicone
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating
of IP65 for dust and water
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
| DLC Product Code: S-V296F6 | |
|
Installation
|
|
|
Mounting
|
Hinged wiring access and
conduit entries on the back, sides, top and bottom make installation a snap
|
|
Optical
|
|
|
BUG Rating
|
150W: B4 U0 G3
|
| 125W: B4 U0 G3 | |
| 100W: B4 U0 G2 | |
| 75W: B3 U0 G2 | |
|
Other
|
|
|
5-Year Limited Warranty
|
5-Year Limited Warranty
|
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
