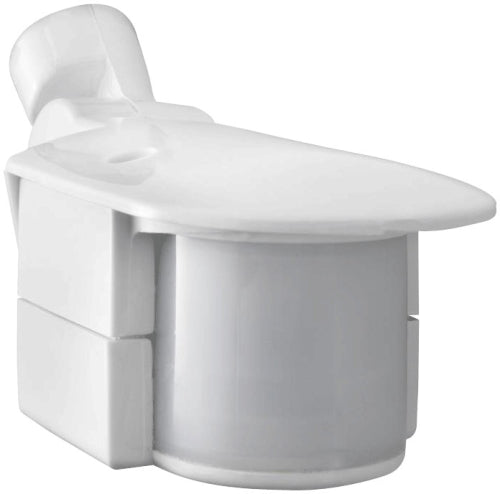

RAB SMS500W Motion Activated Mini Sensor, White
RAB SMS500W Motion Activated Mini Sensor, White
Regular price
Price:
$74.12
Regular price
Price:
Sale price
$74.12
Unit price
per
Ordering a large quantity?Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
description
Description
Controls up to 500 watts Incandescent or 100 watts Fluorescent outdoor lighting. Full 180 degrees coverage with universal swivel. Color matched vandal resistant lens. LED "On Guard" indicator. Fits single gang cast boxes like RAB's B3 series.
Features & Benefits
- Surge protected
- 180 degrees Detection Pattern
- Quick installation with 5 second Test Time and Auto Test Logic
- LED "on guard" indicator
- Protected Manual Override with Auto Reset after 8 hours or at dawn
- 5 year warranty
| UL Listing: | Suitable for wet locations |
| Voltage: | 120 volts AC 60 Hz. |
| Time Adjustment: | 5 seconds to 15 minutes |
| Quick Test Time: | 5 second test time for fast installation. Works day or night. |
| "No Hands" Auto Testing: | Auto mode starts after 4 minutes of testing. No adjustment needed. |
| Photoelectric Control: | Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications. |
| Manual Override: | Double flip wall switch logic prevents activation by brief power outages. Resets after 8 hours. No extra wiring needed. |
| Surge Protection: | Withstands up to 3000 volts |
| LED Detection Indicator: | LED glows red day & night for "on guard" deterrence. |
| RF Immunity: | Circuits fully shielded for maximum radio frequency immunity. |
| Incandescent Watts Switched: | 500 watts @ 120 volts |
| Fluorescent Watts Switched: | 100 watts @ 120 volts |
| Ratings: | 5 amps |
| Power Consumption: | Negligible |
| Time Delay: | 5 seconds to 15 minutes |
| Manual Switch: | None |
| Ambient Light Sensing: | Adjustable |
| Adjustments: | Time, ambient light & sensitivity |
| Detection: | 180 degrees detection pattern |
| Switching Capacity: | Relay On/Off Model: Switches 240 watts when lights are mounted to sensor. 500 watts Incandescent or 100 watts Fluorescent of remotely mounted lighting @ 120 volts |
| Patents: | RAB sensor and fixture designs are protected under U.S. and International Intellectual Property laws. |
Download PDF Specification (English)Share your knowledge of this product. Be the first to write a review »
