Home > RAB Lighting > RAB STL12LV Stealth Sensor for 12 volts AC/DC System, Bronze

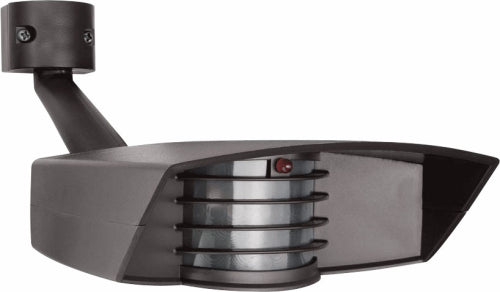

RAB STL12LV Stealth Sensor for 12 volts AC/DC System, Bronze
RAB STL12LV Stealth Sensor for 12 volts AC/DC System, Bronze
Regular price
Price:
$149.26
Regular price
Price:
Sale price
$149.26
Unit price
per
Ordering a large quantity?
Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
description
Description
STEALTH Sensor for 12 volt AC/DC systems. Great for controlling low voltage lighting or security systems. 96 watt switching capacity.
Features & Benefits
- Temperature Compensation
- Easy to read controls
- Radio frequency immunity
- 6000 volt surge protection
- Quick test time
- LED Detection & "On Guard" Indicator
- Color matched vandal resistant lens and grill
- Protected manual override with auto reset
- Can be wired in parallel
- Comprehensive manuals
- 10 year warranty
| UL Listing: | Suitable for wet locations |
| Power Consumption: | 1 watt |
| Time Adjustment: | 5 seconds to 12 minutes |
| Surge Protection: | Withstands up to 6000 volts |
| Wide Sensitivity Control: | Adjustable from 100% to 30% |
| Temperature Compensation: | Sensitivity adjusted automatically for consistent detection in hot and cold ambient temperatures. |
| Wall Switch Manual Override: | Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed. |
| LED Detection Indicator: | Shows when sensor is detecting in daytime and glows red at night for "on-guard" deterrence |
| Advanced Detection Logic: | Minimizes false triggers |
| Color Matched Lens: | Dark lens with bronze units, white lens with white units |
| RF Immunity: | Circuits fully shielded for maximum radio frequency immunity. |
| Horizontal Lock, No-tool Joints: | Keeps sensing pattern level for fast, error-free installation. |
| Photoelectric Control: | Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications |
| Floodlights: | Precision die cast aluminum. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers |
| Voltage: | 12 Volt AC/DC, 96 watts capacity |
| Detection: | 110 degrees view |
| Patents: | RAB sensor and fixture designs are protected under U.S. and International Intellectual Property laws. |
Download PDF Specification (English)Share your knowledge of this product. Be the first to write a review »
