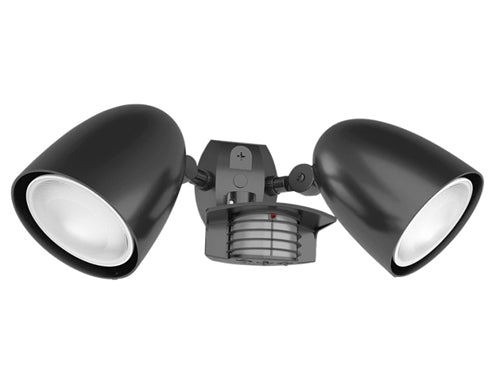

RAB STL200HB/L Stealth Motion Sensor with 200 Degree View and CCT-Selectable PAR38 Bullet Flood Lighting Kit , Bronze
RAB STL200HB/L Stealth Motion Sensor with 200 Degree View and CCT-Selectable PAR38 Bullet Flood Lighting Kit , Bronze
Regular price
Price:
$198.00
Regular price
Price:
Sale price
$198.00
Unit price
per
MODEL: RAB-STL200HB-L
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
|
Electrical
|
|
|
Voltage
|
120V AC 60Hz
|
|
Power Consumption
|
1W
|
|
Surge Protection
|
Withstands up to 6000
volts
|
|
Switching Capacity
|
120W Electronic Ballast
(LED) @ 120 Volts
|
|
Wall Switch Manual
Override
|
Two flip logic prevents
activation by momentary power outages. Stays on for 6 hours. No extra wiring
needed.
|
|
Construction
|
|
|
Temperature Compensation
|
Sensitivity adjusts
automatically for consistent detection in hot and cold ambient temperatures
|
|
Horizontal Lock, No-tool
Joints
|
Keeps sensing pattern
level for fast, error-free installation
|
|
Floodlights
|
Precision die cast
aluminum. 1/2" NPS threaded arm with serrated locking swivel fits all
standard mounting boxes and covers.
|
|
Lamps Supplied
|
Two (2) Edison base PAR38
lamps with three field-selectable color temperatures (3000/4000/5000K).
|
|
LED
Characteristics
|
|
|
LED Detection Indicator
|
Shows when sensor is
detecting in daytime and glows red at night for "on-guard"
deterrence
|
|
Sensor
Specifications
|
|
|
Advanced Detection Logic
|
Minimizes false triggers
|
|
RF Immunity
|
Circuits fully shielded
for maximum radio frequency immunity
|
|
Auto Test Logic
|
5 minutes of test time
when powered. Resets to auto mode without adjustment.
|
|
Time Adjustment
|
5 seconds to 12 minutes
|
|
Photoelectric Control
|
Deactivates lights during
daylight. Fully adjustable for 24 hour operation or custom applications.
|
|
Detection
|
200° view
|
|
Wide Sensitivity Control
|
Adjustable from 100% to
30%
|
|
Adjustable Detection Zone
|
Customize the protection
pattern with included snap-on blinders (if required)
|
|
Other
|
|
|
10 Yr Limited Warranty
|
10 year limited warranty
|
|
Lamp Warranty
|
3 year limited warranty
|
Download PDF Specification
Download PDF ManualShare your knowledge of this product. Be the first to write a review »
