RAB STL360H Super Stealth Bell Flood Kit , Bronze
RAB STL360H Super Stealth Bell Flood Kit , Bronze
Regular price
Price:
$223.04
Regular price
Price:
Sale price
$223.04
Unit price
per
Ordering a large quantity?Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
description
Description

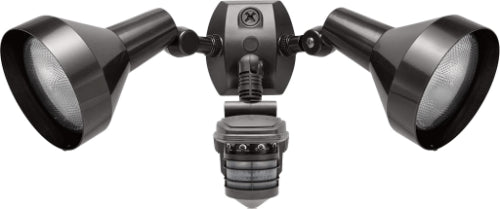

Super Stealth 360 sensor with twin precision die cast H101 deluxe shielded Bell floods pre-wired and assembled on universal CU4 EZ plate. Accepts PAR-38 lamps, 150 watt max. Lamps not supplied.
Features & Benefits
- Senses 180 out + 360 down for Total Detection
- Scanning LED's
- Radio frequency immunity
- 6000 volt surge protection
- Quick test time
- Color matched vandal resistant
- 1000 watt switching capacity
- Die Cast Almuminum Floodlights
- Pre-wired and Pre-assembled on CU4 universal EZ plate
- CU4 fits round, square, octagonal, recessed and surface boxes
- Protected manual override with auto reset
- Can be wired in parallel
- Temperature Compensation
- 10 year warranty
| UL Listing: | Suitable for wet locations |
| Voltage: | 120 volts AC 60 Hz |
| Power Consumption: | 1 watt |
| Time Adjustment: | 5 seconds to 12 minutes |
| Scanning LEDs: | 3 LEDs continually scan back-and-forth |
| Surge Protection: | Withstands up to 6000 volts |
| Wide Sensitivity Control: | Adjustable from 100% to 30% |
| Temperature Compensation: | Sensitivity adjusted automatically for consistent detection in hot and cold ambient temperatures. |
| Wall Switch Manual Override: | Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed. |
| Evening Timer: | Keeps lights on for 1-8 hours after dusk. Then sensor is motion activated until dawn. |
| Set it and forget it: | STL360's full coverage pattern reduces need for aiming and adjustment. |
| Advanced Detection Logic: | Minimizes false triggers |
| Color Matched Lens: | Dark lens with bronze units, white lens with white units |
| RF Immunity: | Circuits fully shielded for maximum radio frequency immunity. |
| Photoelectric Control: | Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications. |
| Detection: | Senses 180 out and 360 down for Total Detection |
| Switching Capacity: | 8 amps, 1000 watts incandescent @ 120 volts |
| Patents: | RAB sensor and fixture designs are protected under U.S. and International Intellectual Property laws. |
