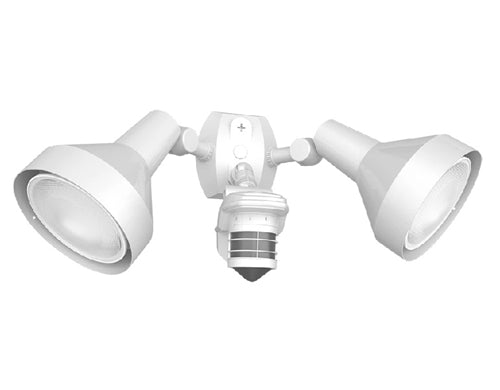

RAB STL360HW/L Bell LED Floodlight Sensor Kit with Adjustable CCT 3000/4000/5000K, White
RAB STL360HW/L Bell LED Floodlight Sensor Kit with Adjustable CCT 3000/4000/5000K, White
Regular price
Price:
$241.00
Regular price
Price:
Sale price
$241.00
Unit price
per
MODEL: RAB-STL360HW-L
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
Electrical |
|
Voltage |
120V AC 60Hz |
Power Consumption |
1W |
Surge Protection |
Withstands up to 6000 volts |
Switching Capacity |
120W Electronic Ballast (LED) @ 120 Volts |
Wall Switch Manual Override |
Two flip logic prevents activation by momentary power outages. Stays on for 6 hours. No extra wiring needed. |
Construction |
|
Temperature Compensation |
Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures |
Horizontal Lock, No-tool Joints |
Keeps sensing pattern level for fast, error-free installation |
Floodlights |
Precision die cast aluminum. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers. |
Lamps Supplied |
Two (2) Edison base PAR38 lamps with three field-selectable color temperatures (3000/4000/5000K). |
LED Characteristics |
|
LED Detection Indicator |
Shows when sensor is detecting in daytime and glows red at night for "on-guard" deterrence |
Sensor Specifications |
|
Advanced Detection Logic |
Minimizes false triggers |
RF Immunity |
Circuits fully shielded for maximum radio frequency immunity |
Auto Test Logic |
5 minutes of test time when powered. Resets to auto mode without adjustment. |
Time Adjustment |
5 seconds to 12 minutes |
Photoelectric Control |
Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications. |
Detection |
Senses 180° and 360° down for Total Detection |
Wide Sensitivity Control |
Adjustable from 100% to 30% |
Adjustable Detection Zone |
Customize the protection pattern with included snap-on blinders (if required) |
Other |
|
10 Yr Limited Warranty |
10 Yr Limited Warranty |
Lamp Warranty |
3 Yr Limited Warranty |
