RAB SUMOFA-7R-12-95CCT-UNV-W LED Surface Mount Fixture Round, 2700K-5000K Color selectable, 1100 Lumens, 90 CRI, White Finish
RAB SUMOFA-7R-12-95CCT-UNV-W LED Surface Mount Fixture Round, 2700K-5000K Color selectable, 1100 Lumens, 90 CRI, White Finish
Regular price
Price:
$37.68
Regular price
Price:
Sale price
$37.68
Unit price
per
Ordering a Large Quantity?
Request a quote
description
|
Performance
|
|
|
Product Type
|
Surface Mount
|
|
Description
|
The SUMO offers a sleek,
low-profile design that adds a modern look to any new construction or
retrofit space. They are affordable and easy to install, with
field-adjustable color temperature.
|
|
Wattage Equivalency
|
60W Incandescent
|
|
Input Wattage
|
12W
|
|
Lumens
|
2700K @ 950lm; 3000K @
970lm; 3500K @ 1,000lm; 4000K @ 1,020lm; 5000K @ 985lm
|
|
Efficacy
|
2700K @ 79lm/W; 3000K @
81lm/W; 3500K @ 83lm/W; 4000K @ 85lm/W; 5000K @ 82lm/W
|
|
L70 Lifespan
|
50,000-Hour LED lifespan
based on IES LM-70 results
|
|
Electrical
|
|
|
Driver
|
Constant Current, Class
2, 60 Hz, 120V: 0.17A
|
|
THD
|
≤20%
|
|
Power Factor
|
≥0.9
|
|
Dimmable
|
Yes, 0-10V
|
|
Input Voltage
|
120-277V
|
|
Operating Frequency
|
50/60Hz
|
|
Input Current @ 120V (mA)
|
150mA
|
|
Input Current @ 240V (mA)
|
248mA
|
|
Input Current @ 277V (mA)
|
65mA
|
|
Operating Temperature
|
-4°F to 104°F (-20°C to
40°C)
|
|
Flicker
|
≤30%
|
|
LED Characteristics
|
|
|
Beam Angle
|
110°±10°
|
|
Color Temperature
|
Field adjustable via dip
switch 2700/3000/3500/4000/5000K
|
|
Color Accuracy (CRI)
|
>90 CRI
|
|
R9 Value
|
High color performance
with R9 greater than or equal to 50
|
|
Color Consistency
|
4-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is
warrantied to shift no more than 200K in color temperature over a 5-year
period
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Construction
|
|
|

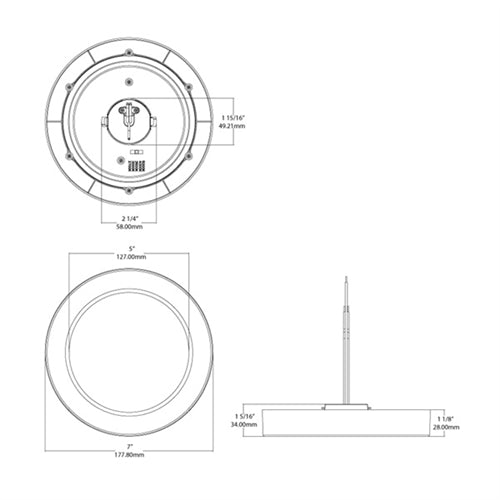

Size
|
7"
|
|
Shape
|
Round
|
|
Finish
|
White
|
|
Enclosure Material
|
Metal
|
|
Trim Style
|
Smooth
|
|
Lens
|
Polycarbonate light
diffuser distributes light evenly and smoothly for general lighting
applications
|
|
Compliance
|
|
|
Listings
|
UL Listed
|
|
Environment
|
Suitable for use in dry,
damp, and wet environments.
|
|
IC Rated
|
No
|
|
Air Tight
|
No
|
|
T20 Compliant
|
No
|
|
California Title 24
|
Can be used to conform
with the requirements of California Title 24 Part 6.
|
|
California Energy
Commission (CEC) Status
|
Lawful for Sales in
California
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNAlm-79 andlm-80.
|
|
RoHS Compliant
|
Mercury and UV free.
RoHS-compliant components.
|
|
FCC
|
Complies with Part 15 of
the FCC Rules
|
|
Trade Agreements Act
Compliant
|
This product is a product
of Cambodia and a "designated country" end product that complies
with the Trade Agreements Act
|
|
Energy Star Approved
|
ENERGY STAR® Version 1.0
Certified
|
|
Certification Model
Number
|
DLR0141(R34-4)
|
|
Energy Star ID
|
3478101
|
|
Other
|
|
|
Accessories
|
DAISY50 |
|
Accessories
|
50' Extension cord with connectors |
|
5-Year, No-Compromise
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of five (5) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish. RAB's warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
