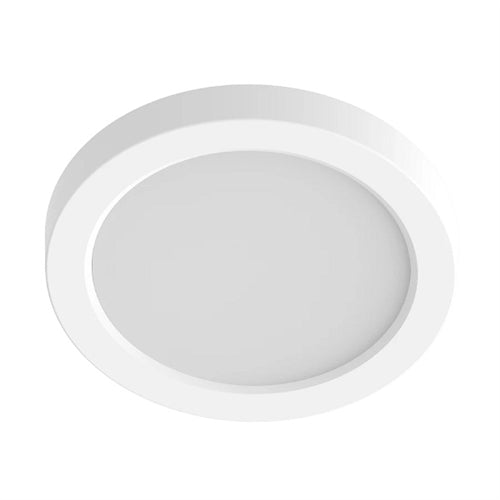

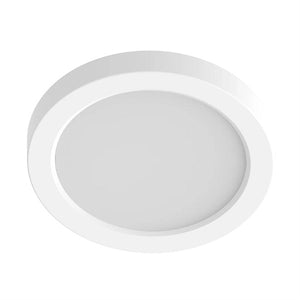

RAB SUMOFA-9R-16-95CCT-UNVT-W LED Surface Mount Fixture Round, 2700K-5000K Color selectable, 1300 Lumens, 90 CRI, White Finish

Surface Mount

The SUMO offers a sleek, low-profile design that adds a modern look to any new construction or retrofit space. They are affordable and easy to install, with field-adjustable color temperature.

100W Incandescent

16W

2700K @ 1,300lm; 3000K @ 1,330lm; 3500K @ 1,360lm; 4000K @ 1,375lm; 5000K @ 1,345lm

2700K @ 81lm/W; 3000K @ 83lm/W; 3500K @ 85lm/W; 4000K @ 86lm/W; 5000K @ 84lm/W

50,000-Hour LED lifespan based on IES LM-70 results

UL Listed

Constant Current, Class 2, 60 Hz, 120V: 0.17A

≤20%

≥0.9

Yes, dimmable down to 10% on compatible TRIAC or 0-10V dimming systems, requires separate 0-10V DC dimming circuit. See Dimmer Compatibility List.

120-277V

50/60Hz

112mA

102mA

-4°F to 104°F (-20°C to 40°C)

≤30%

110°±10°

Field Adjustable via dip switch 2700/3000/3500/4000/5000K

>90 CRI

High color performance with R9 greater than or equal to 50

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Surface mount or recessed; mounting sold separately

9"

Round

White

Metal

Smooth

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Suitable for use in dry, damp, and wet environments.

No

No

This product is ENERGY STAR® Version 2.2 Certified.

DLS0092(SUMOFA-7R-12-95CCT-UNV-W)

No

Can be used to conform with the requirements of California Title 24 Part 6.

Lawful for Sales in California

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C1).

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80

Mercury and UV free. RoHS-compliant components.

Complies with Part 15 of the FCC Rules

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

5 years limited warranty

All values are typical (tolerance +/- 10%)

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
