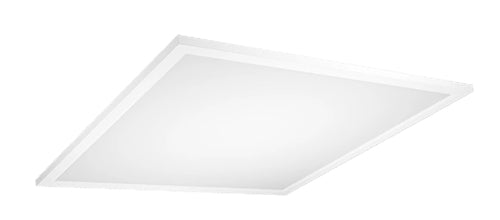

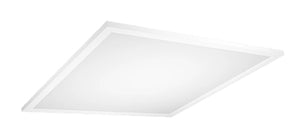

RAB T34FA-2X2/E 30W 2' x 2' LED Troffer, 3500K/4000K/5000K Color Temperature Selectable, Dimmable w/ Battery Backup, White Finish
RAB T34FA-2X2/E 30W 2' x 2' LED Troffer, 3500K/4000K/5000K Color Temperature Selectable, Dimmable w/ Battery Backup, White Finish
Regular price
Price:
$199.00
Regular price
Price:
Sale price
$199.00
Unit price
per
MODEL: RAB-T34FA-2X2-E
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
Performance
Lifespan: 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency: Equivalent to (2) F32T8 or (5) F17T8 or (4) F14T5
Lifespan: 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency: Equivalent to (2) F32T8 or (5) F17T8 or (4) F14T5
Electrical
Drivers:
20W: Constant Current, Class 2, 120-277V, 50/60 Hz,
120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A
30W: Constant Current, Class 2, 120-277V, 50/60 Hz,
120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
40W: Constant Current, Class 2, 120-277V, 50/60 Hz,
120V: 0.34A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A
Drivers:
20W: Constant Current, Class 2, 120-277V, 50/60 Hz,
120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A
30W: Constant Current, Class 2, 120-277V, 50/60 Hz,
120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
40W: Constant Current, Class 2, 120-277V, 50/60 Hz,
120V: 0.34A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A
Dimming Driver:
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD: 5.44% at 120V, 8.25% at 277V
Power Factor: 99.7% at 120V, 95% at 277V
Battery Backup:
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor: 0.33
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD: 5.44% at 120V, 8.25% at 277V
Power Factor: 99.7% at 120V, 95% at 277V
Battery Backup:
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor: 0.33
Other
Note:
All values are typical (tolerance +/- 10%)
5 Yr Limited Warranty:
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
All values are typical (tolerance +/- 10%)
5 Yr Limited Warranty:
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
