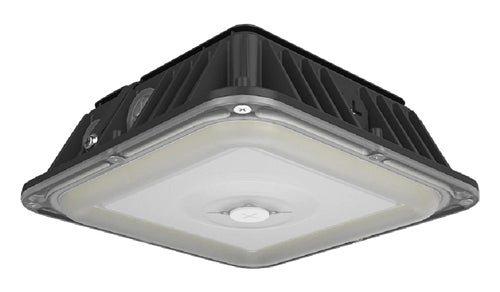

RAB VAN17-30 Field Adjustable Light Output 30W/25W/20W, 3000K/4000K/5000K Color Vandalproof Canopy Lighting, Bronze Finish

Field Adjustable Light Output:

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP65 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Constant Current, Class 2, 120-277V, 50/60 Hz:

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

2.92% at 120V, 8.74% at 277V

99.7% at 120V, 93.3% at 277V

L-N: 4kV

Bulit-in photocell included with on/off switch

Long-life, high-efficacy, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 50°C (122°F)

Precision die-cast aluminum housing and door frame

Retrofit mounting plates for ceiling mounting

Vandal-resistant polycarbonate textured opaque for low-glare lens

Plastic

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

30W: B2 U0 G2

All values are typical (tolerance +/- 10%)

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
