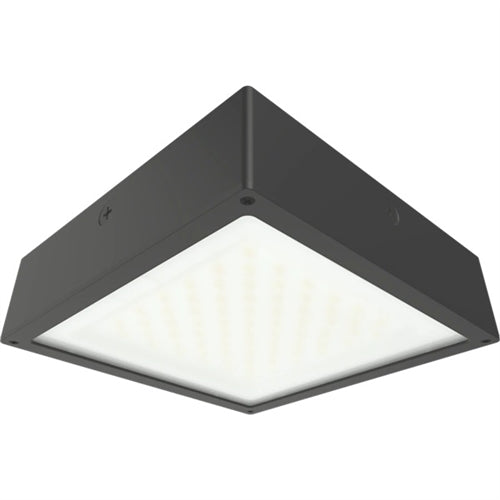

RAB VAN34-30FFR 30/20/10W Field-Adjustable Canopy LED Light, 3000/4000/5000K, 1442-4187 Lumens, Bronze
RAB VAN34-30FFR 30/20/10W Field-Adjustable Canopy LED Light, 3000/4000/5000K, 1442-4187 Lumens, Bronze
Regular price
Price:
$147.68
Regular price
Price:
Sale price
$147.68
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 30W/20W/10W (factory default: 30W) | |
| Color Temperature Selectable: | 3000K, 4000K and 5000K (factory default:4000K) |
| Photocell Selectable: | Built-in on/off photocell (factory default: off) |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating
of IP65 for dust and water
|
|
Trade Agreements Act
Compliant
|
This product is a product
of Cambodia and a "designated country" end product that complies
with the Trade Agreements Act
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
| DLC Product Code: S-KTXZ42 (Stairwell and Passageway Luminaires) | |
| DLC Product Code: S-16T9BR (Fuel Pump Canopy Luminaires) | |
|
Electrical
|
|
|
Driver
|
Constant Current, Class
1, 120-277V, 50/60 Hz:
|
| 30W: 120V: 0.26A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A | |
| 20W: 120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.09A | |
| 10W: 120V: 0.09A, 208V: 0.06A, 240V: 0.06A, 277V: 0.05A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
Aux Power Supply
|
Yes
|
|
Dim to Off
|
Yes
|
|
Surge Protection
|
L/N: 4 kV, L/N-PE: 6 kV
|
|
Photocell
|
Built-in photocell
included with on/off switch
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°F (-40°C)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
104°F (40°C)
|
|
Lens
|
Polycarbonate frosted
flat lens
|
|
Gaskets
|
Ethylene Propylene Diene
Monomer (EPDM)
|
|
Housing
|
Die-cast aluminum
|
|
Reflector/Tray
|
Aluminum
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Other
|
|
|
5-Year Limited Warranty
|
The RAB 5-year, limited
warranty covers light output, driver performance and paint finish. RAB's
warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
