Home > RAB Lighting > RAB VANLED10/E2 10W LED Canopy Light, 0-10V Dimming to 10%, Battery Backup, Bronze

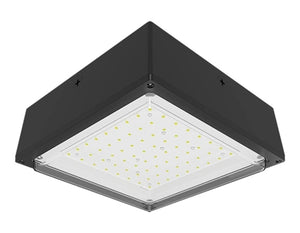

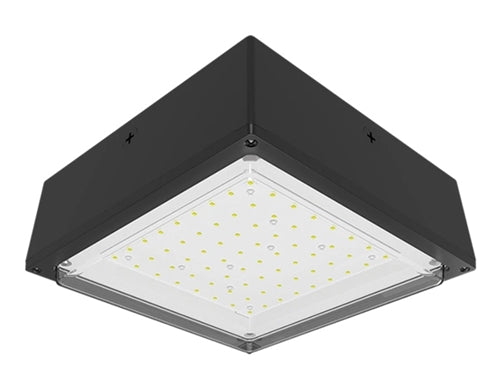

RAB VANLED10/E2 10W LED Canopy Light, 0-10V Dimming to 10%, Battery Backup, Bronze
RAB VANLED10/E2 10W LED Canopy Light, 0-10V Dimming to 10%, Battery Backup, Bronze
Regular price
Price:
$584.69
Regular price
Price:
Sale price
$584.69
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Compliance | |
|
UL Listed
|
Suitable for Wet
Locations. Covered Ceiling Mount Only.
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating
of IP66 for dust and water
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
|
DLC Listed
|
DLC Product Code: PMZZWGXN (DLC Premium: Stairwell and Passageway Luminaires) |
|
DLC Listed
|
DLC Product Code: S-ACEBD4 (DLC Standard: Canopy Lighting) |
|
Electrical
|
|
|
Driver
|
Class 2, Constant
Current, 120-277V, 50-60Hz, 120V: 0.12A, 208V: 0.07A, 240V: 0.06A, 277V:
0.05A
|
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
16.15% at 120V, 12.87% at
277V
|
|
Power Factor
|
96.7% at 120V, 93.1% at
277V
|
|
Battery Backup
|
Battery backup will
operate the fixture for 90 minutes if power fails. Wired for 120.
|
|
Battery Backup Light Loss
Factor
|
0.3
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Stability
|
RAB LEDs exceed industry
standards for chromatic stability
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Construction
|
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
55°C (131°F)
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°C (-40°F)
|
|
Lens
|
Vandal-resistant
polycarbonate textured opaque for low glare drop lens
|
|
Housing
|
Die-cast aluminum housing
and lens frame with (4) 1/2" NPS side conduit entries and weatherproof
rear wire plug and access plate
|
|
Air Tight
|
Housing certified Air
Tight as per ASTM-E283
|
|
Finish
|
Our environmentally
friendly polyester powder coatings are formulated for high-durability and
long-lasting color
|
|
Installation
|
|
|
Mounting
|
Ceiling mount to recessed
junction with knockout template or directy to ceiling surface, utilizing side
conduit entry points
|
|
Other
|
|
|
5-Year, No-Compromise
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of five (5) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish. RAB's warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
|
Performance
|
|
|
Wattage Equivalency
|
Equivalent to 70W Metal
Halide
|
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
