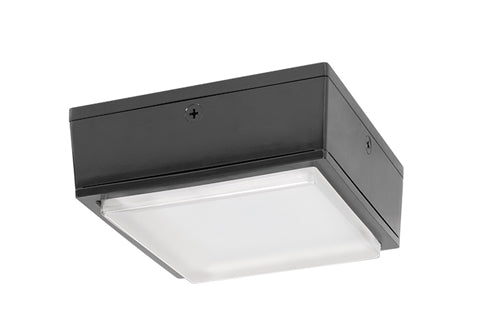

RAB VANLED52/PCS 52W LED Canopy Light with 120V Swivel Photocell, 5000K (Cool), 5401 Lumens, 75 CRI, Drop Lens, Standard Operation, DLC Listed, Bronze Finish

Suitable for Wet Locations. Covered Ceiling Mount Only.

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP66 for dust and water

Class 2, Constant Current, 120-277V, 50-60Hz, 120V: 0.47A, 208V: 0.27A, 240V: 0.24A, 277V: 0.21A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

3.52% at 120V, 6.08% at 277V

99.65% at 120V, 94.48% at 277V

Long-life, high-efficacy, surface-mount LEDs

RAB LEDs exceed industry standards for chromatic stability

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Suitable for use in up to 75°C (167°F)

The minimum starting temperature is -40°C (-40°F)

Vandal-resistant polycarbonate textured opaque for low glare flat lens

Die-cast aluminum housing and lens frame with (4) 1/2" NPS side conduit entries and weatherproof rear wire plug and access plate

Ceiling mount to recessed junction with knockout template or directly to ceiling surface, utilizing side conduit entry points

Housing certified Air Tight as per ASTM E283

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color

Multi Level Motion Sensor

/WS2 sensor options use state-of-the-art surface mount technology (SMT), just like cellular phones and beepers. SMT gives you more reliability, greater RF immunity. This compact sensor that can fit neatly where others cannot. This sensor technology automatically affects the state of operation for lighting systems or individual luminaries based upon detecting the presence or absence of movement for both people as they exit/enter, or for the motion of moving vehicles within the sensors viewing area. The wide 180° viewing angle can detect movement along the entire side of a building with only one compact sensor. The hard lens is molded as part of the case, vandalproof, rainproof, bugproof and absolutely sealed. Sensor functions best when movement is across its detection pattern, not towards the sensor.
