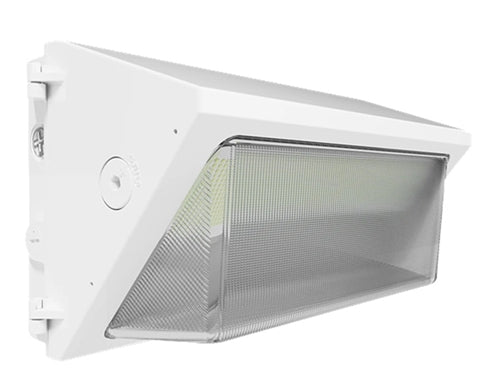

RAB W22-L-150W Field-Adjustable Wallpack, 150/125/100/75W, Selectable CCT 5000K/ 4000K/ 3000K, White
RAB W22-L-150W Field-Adjustable Wallpack, 150/125/100/75W, Selectable CCT 5000K/ 4000K/ 3000K, White
Regular price
Price:
$289.00
Regular price
Price:
Sale price
$289.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
Cutoff Adjustability |
45°, 30°, 15° and 0° (factory default 45°) |
Field Adjustable |
Field Adjustable Light Output: |
| 150W/125W/100W/75W (factory default 150W) | |
| Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K) | |
Compliance |
|
UL Listed |
Suitable for wet locations |
DLC Listed |
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase. |
Electrical |
|
Driver |
Constant Current, Class 1, 120-277V, 50/60 Hz: |
| 150W: 120V: 1.50A, 208V: 0.80A, 240V: 0.70A, 277V: 0.60A | |
| 125W: 120V: 1.05A, 208V: 0.60A, 240V: 0.52A, 277V: 0.46A | |
| 100W: 120V: 0.83A, 208V: 0.48A, 240V: 0.42A, 277V: 0.36A | |
| 75W: 120V: 0.63A, 208V: 0.36A, 240V: 0.32A, 277V: 0.27A | |
Dimming Driver |
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
Photocell |
Integrated photocell included with on/off switch |
Surge Protection |
DM 4 kV+ CM 6 kV |
Performance |
|
Lifespan |
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations |
Performance Data |
|
Wattage Equivalency |
150W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS) |
| 125W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS) | |
| 100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS) | |
| 75W: Replaces up to 350W Metal Halide (MH) or 250W High Pressure Sodium (HPS) | |
LED Characteristics |
|
LEDs |
Long-life, high-efficacy, surface-mount LEDs |
Color Uniformity |
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
Construction |
|
Housing |
Die-cast aluminum |
Lens |
Glass |
Reflector |
Aluminum |
Cold Weather Starting |
The minimum starting temperature is -40°F (-40°C) |
Maximum Ambient Temperature |
Suitable for use in up to 104°F (40°C) |
Green Technology |
Mercury and UV free. RoHS-compliant components. |
Finish |
Formulated for high durability and long-lasting color |
Installation |
|
Mounting |
Suface mount for recessed junction box; 3 conduit entry points |
Optical |
|
BUG Rating |
150W: B3 U5 G5 |
Other |
|
5-Year Limited Warranty |
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty. |
