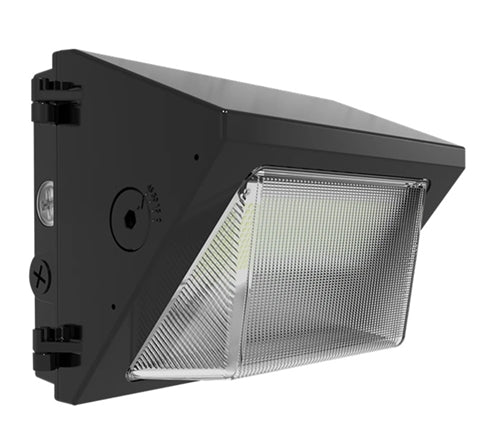

RAB W22-S-30 Field-Adjustable Wallpack, 30/25/20/15W, Selectable CCT 5000K/ 4000K/ 3000K, Bronze
RAB W22-S-30 Field-Adjustable Wallpack, 30/25/20/15W, Selectable CCT 5000K/ 4000K/ 3000K, Bronze
Regular price
Price:
$137.61
Regular price
Price:
Sale price
$137.61
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Cutoff Adjustability
|
45°, 30°, 15° and 0°
(factory default 45°)
|
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 30W/25W/20W/15W (factory default 30W) | |
| Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities.
|
| DLC Product Code: S-VZD6TF | |
|
Electrical
|
|
|
Driver
|
Constant Current, Class
1, 120-277V, 50/60 Hz:
|
| 30W: 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A | |
| 25W: 120V: 0.22A, 208V: 0.12A, 240V: 0.10A, 277V: 0.10A | |
| 20W: 120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A | |
| 15A: 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
Photocell
|
Integrated photocell
included with on/off switch
|
|
Surge Protection
|
DM 2 kV+ CM 4 kV
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IESlm-80 results and TM-21 calculations
|
|
Performance Data
|
|
|
Wattage Equivalency
|
30W: Replaces up to 125W
Metal Halide (MH) or 100W High Pressure Sodium (HPS)
|
| 25W: Replaces up to 125W Metal Halide (MH) or 100W High Pressure Sodium (HPS) | |
| 20W: Replaces up to 100W Metal Halide (MH) or 70W High Pressure Sodium (HPS) | |
| 15W: Replaces up to 70W Metal Halide (MH) or 70W High Pressure Sodium (HPS) | |
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Construction
|
|
|
Housing
|
Die-cast aluminum
|
|
Lens
|
Glass
|
|
Reflector
|
Aluminum
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°F (-40°C)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
104°F (40°C)
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Installation
|
|
|
Mounting
|
Suface mount for recessed
junction box; 3 conduit entry points
|
|
Optical
|
|
|
BUG Rating
|
30W: B1 U3 G3
|
| 25W: B1 U3 G3 | |
| 20W: B1 U3 G3 | |
| 15W: B1 U3 G2 | |
|
Other
|
|
|
5-Year Limited Warranty
|
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty. |
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
