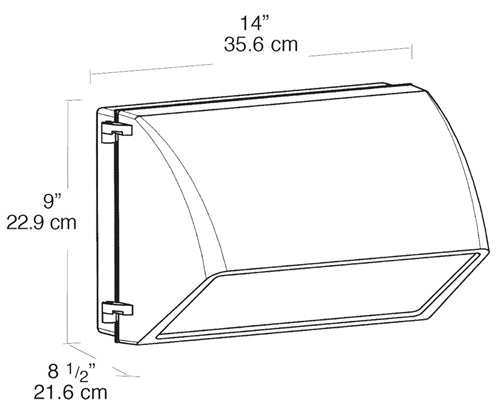

RAB WP2CF42/E2 Emergency Backup Wallpack Cutoff 42W Compact Fluorescent (CFL) Lamp 120V-277V Bronze Color Wired for 277V

Description

Mid sized wallpack with emergency battery Backup and cutoff glare shield.

Features and Benefits

• Emergency battery backup meets NEC requirement
• Test button for required maintenance checks
• Indicator light illuminates when charging
• Maintenance free NiCad battery has 7-10 year life
• Silicone gasket remains in place during relamping
• Top, side and back conduit openings
• Long life lamp included

• Emergency Battery Backup:
  Bodine "Coldpak" will operate the CFL lamp for 90 minutes if power fails. Rated -20°C to 55°C. Battery is a maintenance free NiCad with 7 - 10 year life. Wired for 277V.

• UL Listing:
  Suitable for wet locations. HID fixtures can be wired with 90°C supply wiring if supply wires are routed 3" away from ballast.

• Housing:
  Die cast aluminum, 1/2" NPS tapped holes top, both sides and back for conduit or photocontrol. Hinged refractor frame. Continuous silicone rubber gasket.
• Reflector:
  Specular anodized aluminum, removable for installation. Symmetrical light pattern maximizes distance between fixtures.
• Cutoff Lens:
  Tempered glass.
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.

• Refractor:
  Prismatic optics designed to minimize glare and throw light down and out. Heat resistant borosilicate glass.
