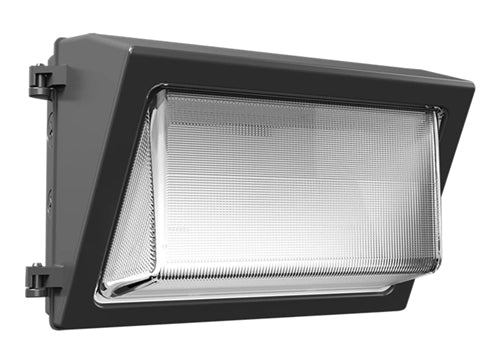

RAB Lighting WP2XFU40 LED Wallpack 40/30/20W Field Adjustable Light Output, 3000K, 4000K and 5000K Color Selectable, Bronze
RAB Lighting WP2XFU40 LED Wallpack 40/30/20W Field Adjustable Light Output, 3000K, 4000K and 5000K Color Selectable, Bronze
Regular price
Price:
$154.00
Regular price
Price:
Sale price
$154.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 40W/30W/20W (factory default 40W) | |
| Color temperature (selectable by 3000K, 4000K and 5000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating
of IP65 for dust and water
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
40W: 175W Metal Halide
|
| 30W: 125W Metal Halide | |
| 20W: 100W Metal Halide | |
|
LED
Characteristics
|
|
|
LEDs
|
Long-life,
high-efficiency, surface-mount LEDs
|
|
Electrical
|
|
|
Driver
|
40W: Constant Current,
Class 1, 120-277V, 50/60 Hz, 120V: 0.33A, 208V: 0.19A, 240V: 0.17A, 277V:
0.15A
|
| 30W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.24A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A | |
| 20W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.16A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
5.93% at 120V, 14.88% at
277V
|
|
Power Factor
|
99% at 120V, 89.6% at
277V
|
|
Photocell
|
120-277V selectable
photocell that can be turned on and off.
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°F (-40°C)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
122°F (50°C)
|
|
Housing
|
Die-cast aluminum
|
|
Lens
|
Tempered glass
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Installation
|
|
|
Mounting
|
Wall mount
|
|
Other
|
|
|
5-Year Limited Warranty
|
The RAB 5-year, limited
warranty covers light output, driver performance and paint finish. RAB's
warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
