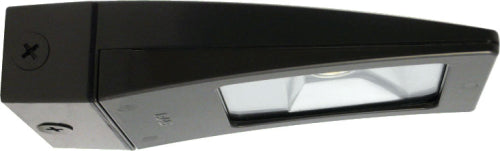

RAB WPLED10 Wallpack 10W LED Lamp, White Light 120V-240V Bronze Color
RAB WPLED10 Wallpack 10W LED Lamp, White Light 120V-240V Bronze Color
Regular price
Price:
$217.60
Regular price
Price:
Sale price
$217.60
Unit price
per
Ordering a large quantity?
Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
description
Features & Benefits
- Full Cutoff, Fully Shielded LED Wallpack
- High Output LED Light Engine
- Maintains 70% of its initial lumens at 50,000 hours
- Weatherproof high temperature silicone gaskets
- Superior Heat Sinking with Die Cast Aluminum Housing and External Fins
| Model # | WPLED10 |
| Warranty | RAB LED fixtures give you peace of mind because both the fixture and light engine components are backed by RAB's 5 Year Warranty. |
| Gaskets | High Temperature Silicone |
| Finish | Chip and fade resistant polyester powder coat finish. |
| Dark Sky Approved | The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire. |
| For use on LEED Buildings | IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction. |
| Patents | The design of the LPACK is protected by U.S. Pat. D604,004 and patents pending in Canada, China and Taiwan. |
| IESNA LM-79 | RAB LED luminaires comply with the IESNA LM-79 testing procedure, which measures performance qualities of LED luminaires to allow for a true comparison of luminaires regardless of the light source. |
| Driver Reliability | MIL Spec 217F results based on UL certified testing lab results in 122F ambient temperatures indicate mean time between failures of greater than 200,000 hrs |
| Fixture Efficacy | 41 Lumens per Watt |
| Color Accuracy | 92 CRI |
| Light Color | 5250 K (Daylight) |
| LED Light Engine | Multi-chip 10W high output long life LED Driver: Constant Current, Class II, 120V-240V, 50/6/ Hz, 350mA |
| Heatsink | Cast aluminum thermal management system for optimal heat sinking. The LPACK is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature. |
| Lumen Maintenance | The LED will deliver 70% of its initial lumens at 50,000 hours of operation. |
| Housing | Precision die cast aluminum housing, lens frame. |
| Mounting | Junction box and surface mount. |
| California Title 24 | LPACK complies with California Title 24 building and electrical codes. |
| Green Technology | RAB LEDs are Mercury and UV free. |
| IESNA LM-79 & IESNA LM-80 Testing | RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label. |
Download PDF specification Share your knowledge of this product. Be the first to write a review »
