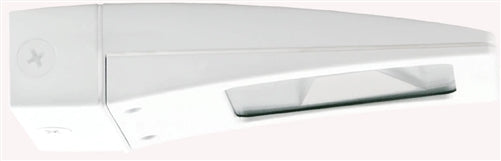

RAB WPLED10W/PCS Wallpack 10W LED Lamp, White Light 120V-240V White Color with Photocontrol

Suitable for Wet Locations as a Downlight. Suitable for Damp Locations as an Uplight. Wall Mount only. Suitable for Mounting within 4ft. of ground.

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Equivalent to 70W Metal Halide

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.09A, 208V: 0.05A, 240V: 0.05A, 277V 0.04A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

6.51% at 120V, 13.57% at 277V

99% at 120V, 90.6% at 277V

120V Swivel photocell included. Photocell is only compatible with 120V.

Formulated for high durability and long-lasting color

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Precision die-cast aluminum housing, lens frame

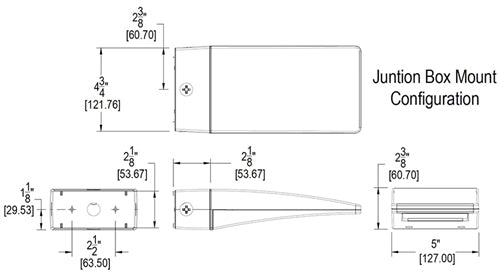

Surface plate and Junction box

Mercury and UV free. RoHS-compliant components.

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

The LED will deliver 70% of its initial lumens at 100,000 hours of operation

The design of the LPACK is protected by U.S. Pat. D604,004 and patents pending in Canada, China and Taiwan.

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

B1 U0 G0
