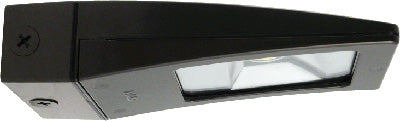

RAB WPLED13 Wallpack 13W LED Lamp, White Light 120V-277V Bronze Color
RAB WPLED13 Wallpack 13W LED Lamp, White Light 120V-277V Bronze Color
Regular price
Price:
$299.20
Regular price
Price:
Sale price
$299.20
Unit price
per
Ordering a large quantity?
Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
description
Features & Benefits
- Full Cutoff, Fully Shielded LED Wallpack
- High Output LED Light Engine
- Maintains 70% of its initial lumens at 50,000 hours
- Weatherproof high temperature silicone gaskets
- Superior Heat Sinking with Die Cast Aluminum Housing and External Fins
| Model # | WPLED13 |
| UL Listing | Suitable for wet locations. Suitable for mounting within 4' of the ground. |
| Cold Weather Starting | The minimum starting temperature is -30 C |
| Ambient Temperature | Suitable for use in 50C (122F) ambient temperatures |
| LED Light Engine | Multi-chip 13W high output long life LED Driver Constant Current, Class 2 100V - 277V, 50/60 Hz |
| Surge Protection | 4kv |
| Color Temperature (Nominal CCT) | 5000 K |
| Fixture Efficacy | 71 Lumens per Watt |
| Color Accuracy | 66 CRI |
| Lumen Maintenance | The LED will deliver 70% of its initial lumens at 50,000 hours of operation. |
| Finish | Chip and fade resistant polyester powder coat finish. |
| Color Stability | RAB LED products significantly exceed Energy Star Requirements for Chromatic Stability during LM-80 Testing. |
| Color Uniformity | RAB's range of CCT (Correlated color temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2008. |
| Green Technology | RAB LEDs are Mercury and UV free. |
| Dark Sky Approved | The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire. |
| For use on LEED Buildings | IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction. |
| Patents | The design of the LPACK is protected by U.S. Pat. D604,004 and patents pending in Canada, China and Taiwan. |
| IESNA LM-79 & IESNA LM-80 Testing | RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label. |
| Gaskets | High Temperature Silicone |
| Warranty | RAB LED fixtures give you peace of mind because both the fixture and light engine components are backed by RAB's 5 Year Warranty. |
| Equivalency | The WPLED13 is Equivalent in delivered lumens to a 100W Metal Halide Wallpack. |
| HID Replacement Range | The WPLED13 can be used to replace 70-150W Metal Halide Wallpacks based on delivered lumens. |
Download PDF specification Share your knowledge of this product. Be the first to write a review »
