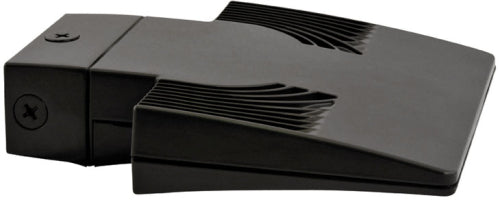

RAB WPLED20 Wallpack 20W LED Lamp, White Light 120V-277V Bronze Color
RAB WPLED20 Wallpack 20W LED Lamp, White Light 120V-277V Bronze Color
Regular price
Price:
$327.00
Regular price
Price:
Sale price
$327.00
Unit price
per
free shiping
details >>
Ordering a large quantity?
Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
description
Features & Benefits
- Full Cutoff, Fully Shielded LED Wallpack
- High Output LED Light Engine
- Maintains 70% of its initial lumens at 50,000 hours
- Weatherproof high temperature silicone gaskets
- Superior Heat Sinking with Die Cast Aluminum Housing and External Fins
| Model # | WPLED20 |
| Warranty | RAB LED fixtures give you peace of mind because both the fixture and light engine components are backed by RAB's 5 Year Warranty. |
| Gaskets | High Temperature Silicone |
| Finish | Chip and fade resistant polyester powder coat finish. |
| Dark Sky Approved | The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire. |
| For use on LEED Buildings | IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction. |
| Patents | The WPLED20 design is protected under patents pending in the U.S., Canada, China, Taiwan and Mexico |
| IESNA LM-79 | RAB LED luminaires comply with the IESNA LM-79 testing procedure, which measures performance qualities of LED luminaires to allow for a true comparison of luminaires regardless of the light source. |
| Driver Reliability | MIL Spec 217F results based on UL certified testing lab results in 122F ambient temperatures indicate mean time between failures of greater than 90,000 hrs |
| Total Harmonic Distortion | THD = 8.4% |
| Driver | Automatic Voltage Sensing Driver for 120 � 277 volts |
| Fixture Efficacy | 46 Lumens per Watt |
| Color Accuracy | 70 CRI |
| Light Color | 5584 K (Daylight) |
| LED Light Engine | Two Multi-chip 10W high output long life LED Driver: Constant Current, Class 2 |
| Heatsink | Integral cast aluminum mounting pad and external fins for optimal heat sinking to ensure cool operation with maximum LED life and light output. |
| Housing | Precision die cast aluminum housing, lens frame and moutning plate. |
| Two Mounting Options | Junction Box with 5 Conduit Entry Points and Threaded Plugs for surface mounting plus Cover Plate for mounting over 4" recessed junction box included with WPLED20 |
| Green Technology | RAB LEDs are Mercury and UV free |
| IESNA LM-79 & IESNA LM-80 Testing | RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label. |
| Patents | LFLOOD thermal heatsink technology is protected under utility patents pending in the U.S., Canada and China. |
Download PDF specification Share your knowledge of this product. Be the first to write a review »
