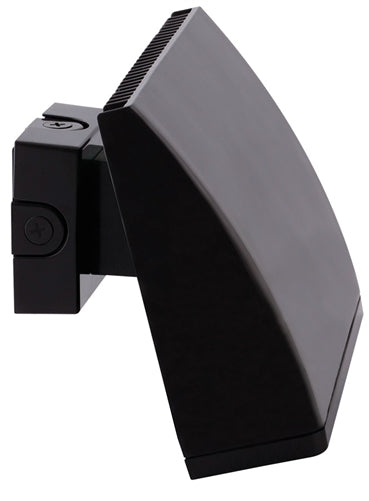

RAB WPLED80 80W LED Standard Wallpack, 5000K Color Temperature (Cool), Bronze Finish
RAB WPLED80 80W LED Standard Wallpack, 5000K Color Temperature (Cool), Bronze Finish
Regular price
Price:
$568.48
Regular price
Price:
Sale price
$568.48
Unit price
per
free shiping
details >>
Ordering a large quantity?
Request a quote
description
LED 80W Wallpacks. 3 cutoff options. Patent Pending thermal management system. 100,000 hour L70 lifespan. 5 Year Warranty.
High performance LED light engine Maintains 70% of initial lumens at 100,000 hours Weatherproof high temperature silicone gaskets Superior heat sinking with die cast aluminum housing and external fins Traditional wallpack look from the front 3 cutoff options 5-year warrant
Listings
-
UL Listing:
Suitable for Wet Locations as Uplight and Downlight Wall Mount Only. -
DLC Listed:
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. -
IESNA LM-79 & LM-80 Testing:
RAB LED Luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
-
LEDs:
Two (2) multi-chip, high-output, long-life LEDs. -
Inrush Current:
267.2A -
Inrush Current Duration:
700µs -
Warranty:
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
-
Lifespan:
100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations. -
Color Consistency:
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color. -
Color Stability:
LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period. -
Color Uniformity:
RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.
-
Driver:
Constant Current, Class 2, 2000mA, 100-277V, 50-60Hz, 1.1A, Power Factor 99% -
Surge Protection:
4kV
-
THD:
4.3% at 120V, 12.4% at 277V -
California Title 24:
WPLED80/PCS complies with 2013 California Title 24 building and electrical codes as a commercial outdoor pole-mounted fixture > 30 Watts mounted at height greater than 24 feet. For mounting heights < 24 feet see WPLED52/BL with bi-level operation; additional component requirements will be listed in the Title 24 section under technical specifications on the product page.
-
Patents:
The WPLED design is protected by patents in the U.S. Pat D653,377, Canada Pat. 142252, China Pat. ZL201130356930.8, and Mexico Pat. 36921 and pending patent in TW..
-
Cold Weather Starting:
Minimum starting temperature is -40°F / -40°C. -
Ambient Temperature:
Suitable for use in 40°C (104°F) ambient temperatures. -
Thermal Management:
Superior thermal management with external Air-Flow fins. -
Housing:
Precision die cast aluminum housing, lens frame. -
Mounting:
Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two-piece bracket with tether for ease of installation and wiring. -
Arm:
Die-cast aluminum with wiring access plate. -
Cutoff:
Standard (15°) -
Lens:
Tempered glass. -
Reflector:
Specular vacuum metallized polycarbonate. -
Gaskets:
High-temperature silicone gaskets, including a wiring plug gasket, seal out moisture. -
Finish:
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals. -
Green Technology:
Mercury and UV free, and RoHS compliant.
-
Replacement:
WPLED80 replaces up to 400W MH.
downloads
Download PDF specification Share your knowledge of this product. Be the first to write a review »
