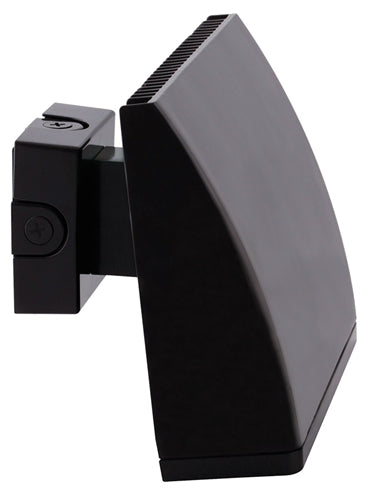

RAB WPLEDC80/BL 80W LED Cutoff Wallpack, 5000K Color Temperature (Cool), Bi-Level Operation, Bronze Finish

RAB WPLEDC80/BL 80W LED Cutoff Wallpack, 5000K Color Temperature (Cool), Bi-Level Operation, Bronze Finish

Price: $731.68
Price: $731.68

MODEL: RAB-WPLEDC80-BL
Add To Wishlist
free shiping details >>
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Description
  • LED 80W Wallpacks. 3 cutoff options. Patent Pending thermal management system. 100,000 hour L70 lifespan. 5 Year Warranty.
Features & Benefits
High performance LED light engine
  • Maintains 70% of initial lumens at 100,000 hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins
  • Traditional wallpack look from the front
  • 3 cutoff options
  • 5-year warranty

    • Other
    • WPLEDC80 with Bi-Level Operation:
      Allows 50% and 100% output modes.
    • LEDs:
      Two (2) multi-chip, high-output, long-life LEDs.
    • Inrush Current:
      331.4A
    • Inrush Current Duration:
      300µs
    • Country of Origin:
      Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
    • Buy American Act Compliant:
      This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
    • Recovery Act (ARRA) Compliant:
      This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
    • Trade Agreements Act Compliant:
      This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
    • GSA Schedule:
      Suitable in accordance with FAR Subpart 25.4.
    • Warranty:
      RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
    Listings
    • UL Listing:
      Suitable for wet locations..
    • IESNA LM-79 & LM-80 Testing:
      RAB LED Luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
    LED Characteristics
    • Lifespan:
      100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
    • Color Consistency:
      7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
    • Color Stability:
      LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
    • Color Uniformity:
      RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.
    Electrical
    • Driver:
      Two drivers, Class 2, 1050mA, 120-277V, 50-60Hz, 0.8A, Power Factor 95%
    • Surge Protection:
      4kV
    Custom
    • THD:
      4.3% at 120V, 12.4% at 277V
    • California Title 24:
      WPLEDC80/BL with bi-level operation complies with 2013 California Title 24 building and electrical codes as a commercial outdoor pole-mounted fixture > 30 Watts mounted up to 24 feet when used with a RAB photo/motion control. Select a photo/motion control using catalog number STL110, STL200 or STL360. Mounting heights greater than 24 feet require only a photocell. See WPLEDC80/PCS or WPLEDC80/PCS2 (277V) for photocell versions.
    • Patents:
      The WPLED design is protected by patents in the U.S. Pat D653,377, Canada Pat. 142252, China Pat. ZL201130356930.8, and Mexico Pat. 36921 and pending patent in TW.
    Construction
    • Cold Weather Starting:
      Minimum starting temperature is -40°F / -40°C.
    • Ambient Temperature:
      Suitable for use in 40°C (104°F) ambient temperatures.
    • Thermal Management:
      Superior thermal management with external Air-Flow fins.
    • Housing:
      Precision die cast aluminum housing, lens frame.
    • Mounting:
      Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two-piece bracket with tether for ease of installation and wiring.
    • Arm:
      Die-cast aluminum with wiring access plate.
    • Cutoff:
      Cutoff (7.5°)
    • Lens:
      Tempered glass.
    • Reflector:
      Specular vacuum metallized polycarbonate.
    • Gaskets:
      High-temperature silicone gaskets, including a wiring plug gasket, seal out moisture.
    • Finish:
      Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
    • Green Technology:
      Mercury and UV free, and RoHS compliant.
    Optical
    • Replacement:
      WPLED80 replaces up to 400W MH.
