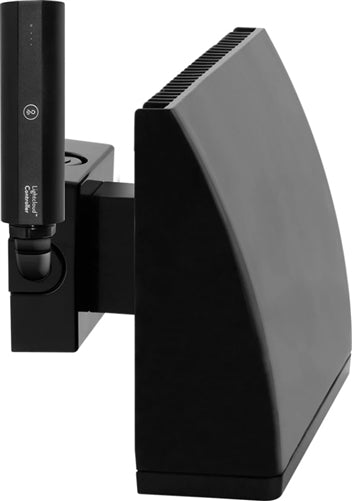

RAB WPLEDFC80N/D10/LC 80W LED Full Cutoff Wallpack, 4000K Color Temperature (Neutral), with 0-10V Dimming, with Lightcloud, Bronze Finish

Suitable for wet locations

Ingress protection rating of IP66 for dust and water

Two (2) multi-chip, high-output, long-life LEDs

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Replaces 320W Metal Halide

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Superior thermal management with external "Air-Flow" fins

Precision die-cast aluminum housing, lens frame

Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two-piece bracket with tether for ease of installation and wiring.

Die-cast aluminum with wiring access plate

Full-cutoff (0°)

Tempered glass

Specular vacuum metallized polycarbonate

High-temperature silicone gaskets, including a wiring plug gasket, seal out moisture

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Constant Current, Class 2, 2000mA, 100-277V, 50-60Hz, 1.1A, Power Factor 99%

6.39% at 120V, 10.26% at 277V

99.5% at 120V, 93.5% at 277V

4kV

Replaces up to 400W Metal Halide

The WPLED design is protected by patents in the U.S. Pat D653,377, Canada Pat. 142252, China Pat. ZL201130356930.8, and Mexico Pat. 36921 and pending patent in TW.

5 years limited warranty

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

B1 U0 G1
