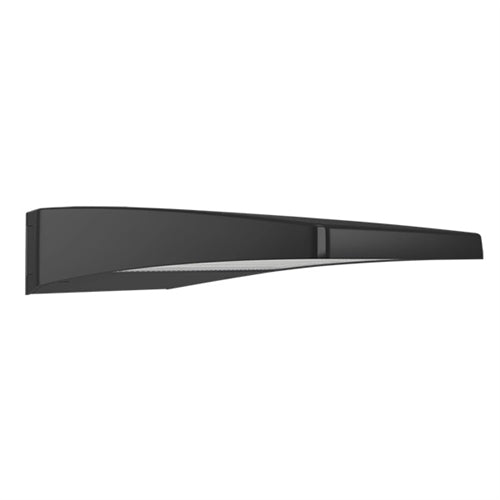

RAB WPLEDM Field Adjustable Light Output 32W/24W/16W and Color Temperature Selectable 3000K, 4000K and 5000K LED Wallpack
RAB WPLEDM Field Adjustable Light Output 32W/24W/16W and Color Temperature Selectable 3000K, 4000K and 5000K LED Wallpack
Regular price
Price:
$167.31
Regular price
Price:
Sale price
$167.31
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 32W/24W/16W (factory default: 24W) | |
| Color temperature selectable by 3000K, 4000K and 5000K (factory default: 4000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
| DLC Product Code: S-FP7DFD | |
|
Electrical
|
|
|
Driver
|
32W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.26A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A |
| 24W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.19A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A | |
| 16W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.13A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
6.58% at 120V, 11.18% at 277V |
|
Power Factor
|
99.5% at 120V, 92.3% at 277V |
|
Photocell
|
Integrated photocell
included with on/off switch
|
|
Surge Protection
|
L-L 2kV; L-G 4kV
|
|
Aux Power Supply
|
No
|
|
Dim to Off
|
Yes
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Optical
|
|
|
BUG Rating
|
32W: B1 U0 G1 |
| 24W: B1 U0 G1 | |
| 16W: B1 U0 G1 | |
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Consistency
|
7-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Construction
|
|
|
Full Cutoff
|
Allows for conformance to
the IDA's fully shielding requirement, emitting no light above 90 degrees.
|
|
Housing
|
Die-cast aluminum
|
|
Lens
|
Acrylic lens
|
|
Reflector
|
High reflection
polycarbonate
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°C (-40°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Installation
|
|
|
Mounting
|
Integrated j-box and an
optional wall plate included.
|
|
Other
|
|
|
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of five (5) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish. RAB's warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
|
Buy American Act
Compliance
|
RAB values USA
manufacturing! Upon request, RAB may be able to manufacture this product to
be compliant with the Buy American Act (BAA). Please contact customer service
to request a quote for the product to be made BAA compliant.
|
