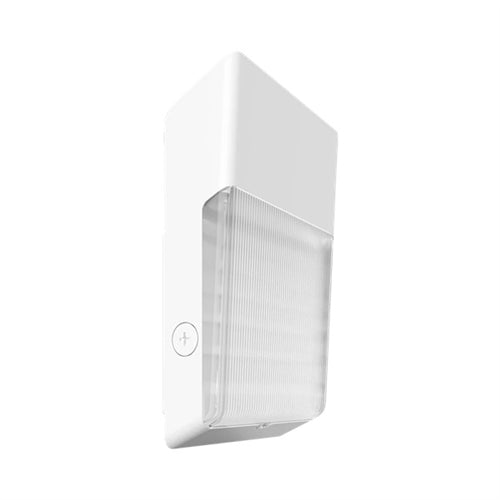

RAB WPTW 40/25/15W Field-Adjustable LED Tall Wallpack, 3000/4000/5000K, 2162-5345 Lumens, Surface Mount, White

Field Adjustable Light Output:

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Suitable for wet locations

Ingress protection rating of IP65 for dust and water

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Long-life, high-efficacy, surface-mount LEDs

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

The minimum starting temperature is -40°F (-40°C)

Suitable for use in up to 104°F (40°C)

Precision die-cast aluminum

Polycarbonate lens

Specular aluminum

High-temperature silicone gaskets

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Constant Current, Class 1, 120-277V, 50/60 Hz:

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

9.94% at 120V, 9.42% at 277V

99.5% at 120V, 98.1% at 277V

Yes

4 kV

Integrated photocell included with on/off switch

Wall mount
