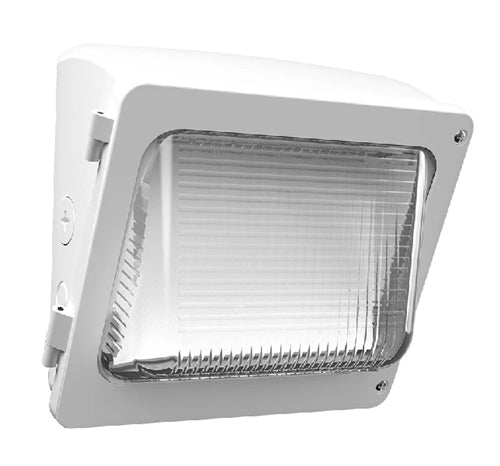

RAB WPX1W 30/20/15W LED Wallpack, 2497-4739 lumens, 3000K/4000K/5000K Color Temperature, 120-277V, White

Field Adjustable Light Output:

Suitable for wet locations

Ingress protection rating of IP65 for dust and water

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Constant Current, Class 2, 120-277V, 50/60 Hz

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

30W: 2.82% at 120V, 9.29% at 277V

30W: 99.7% at 120V, 93.5% at 277V

Integrated photocell included with on/off switch

4kV

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

30W: Replaces up to 125W Metal Halide (MH) or 100W High Pressure Sodium (HPS)

Long-life, high-efficacy, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Aluminum alloy

Hinged wiring access and conduit entries on the back sides, top and bottom make installation a snap

Prismatic, heat-resistant borosilicate glass

Aluminum

High-temperature silicone

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Mercury and UV free. RoHS-compliant components.

Formulated for high durability and long-lasting color

All values are typical (tolerance +/- 10%)

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
