Home > RAB Lighting > RAB WPX2/E 80/60/40W LED Wallpack, 5789-11353 Lumens, 3000K/4000K/5000K Color Temperature, Photocell, Bronze

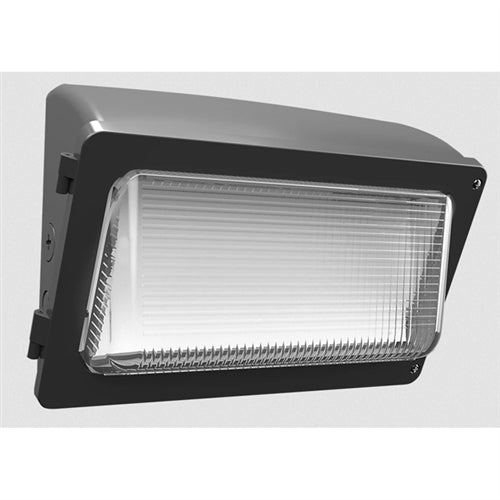

RAB WPX2/E 80/60/40W LED Wallpack, 5789-11353 Lumens, 3000K/4000K/5000K Color Temperature, Photocell, Bronze
RAB WPX2/E 80/60/40W LED Wallpack, 5789-11353 Lumens, 3000K/4000K/5000K Color Temperature, Photocell, Bronze
Regular price
Price:
$360.44
Regular price
Price:
Sale price
$360.44
Unit price
per
Ordering a large quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 80W/60W/40W (factory default 80W) | |
| Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IP Rating
|
Ingress protection rating
of IP65 for dust and water
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
| DLC Product Code: S-QGK4HV | |
|
Electrical
|
|
|
Driver
|
Constant Current, Class
2, 120-277V, 50/60 Hz
|
| 80W: 120V: 0.66A 208V: 0.39A, 240V: 0.33A, 277V: 0.30A | |
| 60W: 120V: 0.48A 208V: 0.29A, 240V: 0.25A, 277V: 0.23A | |
| 40W: 120V: 0.34A 208V: 0.19A, 240V: 0.17A, 277V: 0.16A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
80W: 2.48% at 120V, 3.66%
at 277V
|
| 60W: 2.03% at 120V, 12.03% at 277V | |
| 40W: 1.97% at 120V, 2.96% at 277V | |
|
Power Factor
|
80W: 99.7% at 120V, 95%
at 277V
|
| 60W: 99.6% at 120V, 91% at 277V | |
| 40W: 99.2% at 120V, 84.8% at 277V | |
|
Photocell
|
Integrated photocell
included with on/off switch
|
|
Surge Protection
|
4kV
|
|
Battery Backup
|
Battery backup will
operate the fixture for 90 minutes if power fails. Wired for 120-277V.
|
|
Battery Backup Light Loss
Factor
|
0.08
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
80W: Replaces up to 350W
Metal Halide (MH) or 250W High Pressure Sodium (HPS)
|
| 60W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS) | |
| 40W: Replaces up to 175W Metal Halide (MH) or 150W High Pressure Sodium (HPS) | |
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Construction
|
|
|
Housing
|
Aluminum alloy
|
|
Mounting
|
Hinged wiring access and
conduit entries on the back sides, top and bottom make installation a snap
|
|
Lens
|
Prismatic, heat-resistant
borosilicate glass
|
|
Reflector
|
Aluminum
|
|
Gaskets
|
High-temperature silicone
|
|
Cold Weather Starting
|
The minimum starting
temperature is 1°C (33.8°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
60°C (140°F)
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Other
|
|
|
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of ten (10) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish. RAB's warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
|
Note
|
All values are typical
(tolerance +/- 10%)
|
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
