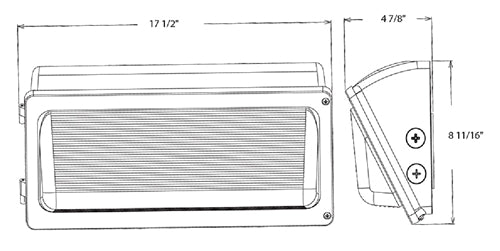

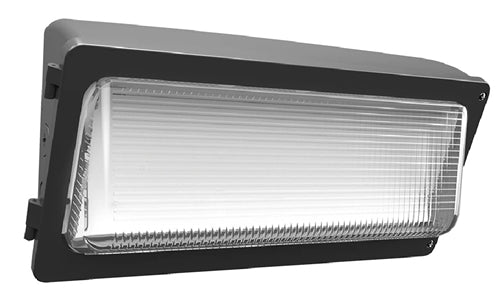

RAB WPX3/MVS 130W/100W/65W Field Adjustable LED Wallpack, 3000/4000/5000K CCT Selectable, 120-277V, Integrated Photocell with On/Off Switch
RAB WPX3/MVS 130W/100W/65W Field Adjustable LED Wallpack, 3000/4000/5000K CCT Selectable, 120-277V, Integrated Photocell with On/Off Switch
Regular price
Price:
$381.15
Regular price
Price:
Sale price
$381.15
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 130W/100W/65W (factory default 130W) | |
| Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IP Rating
|
Ingress protection rating
of IP65 for dust and water
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
| DLC Product Code: S-10CCLB | |
|
Electrical
|
|
|
Driver
|
Constant Current, Class
1, 120-277V, 50/60 Hz
|
| 130W: 120V: 1.10A 208V: 0.63A, 240V: 0.55A, 277V: 0.48A | |
| 100W: 120V: 0.84A 208V: 0.48A, 240V: 0.42A, 277V: 0.37A | |
| 65W: 120V: 0.55A 208V: 0.32A, 240V: 0.27A, 277V: 0.26A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
130W: 4.08% at 120V,
7.17% at 277V
|
| 100W: 4.35% at 120V, 8.89% at 277V | |
| 65W: 5.11% at 120V, 12.15% at 277V | |
|
Power Factor
|
130W: 99.8% at 120V,
95.9% at 277V
|
| 100W: 99.7% at 120V, 93.7% at 277V | |
| 65W: 99.3% at 120V, 87% at 277V | |
|
Photocell
|
Integrated photocell
included with on/off switch
|
|
Surge Protection
|
6kV
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
130W: Replaces up to 400W
Metal Halide (MH) or 400W High Pressure Sodium (HPS)
|
| 100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS) | |
| 65W: Replaces up to 350W Metal Halide (MH) or 200W High Pressure Sodium (HPS) | |
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Construction
|
|
|
Housing
|
Aluminum alloy
|
|
Mounting
|
Hinged wiring access and
conduit entries on the back sides, top and bottom make installation a snap
|
|
Lens
|
Prismatic, heat-resistant
borosilicate glass
|
|
Reflector
|
Aluminum
|
|
Gaskets
|
High-temperature silicone
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°C (-40°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Sensor
Settings
|
|
|
Microwave Motion Sensor
|
Microwave based
technology occupancy sensor that automatically affect the operation of
lighting equipment based upon detecting the presence or absence of people in
a space.
|
|
Factory Settings
|
Brightness: 100%
|
| Hold Time: 20 Minutes | |
| Daylight: Disabled | |
| Sensitivity: 100% | |
| Stand-by dimming level: 20% | |
| Stand-by time: 1 Minute | |
|
Remote Control
|
Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. |
|
Other
|
|
|
Warranty
|
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty. |
|
Buy American Act
Compliance
|
RAB values USA
manufacturing! Upon request, RAB may be able to manufacture this product to
be compliant with the Buy American Act (BAA). Please contact customer service
to request a quote for the product to be made BAA compliant.
|
