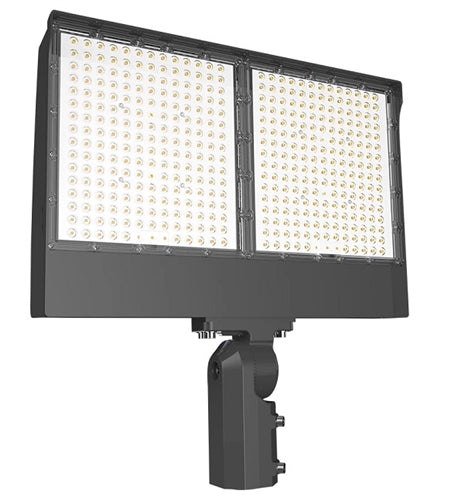

RAB X17XFU330SF/PCT 330W LED Floodlight, 23907-49228 Lumens, 120-277V, 3000K, 4000K and 5000K, 80 CRI, with Photocell, Bronze Finish

Field Adjustable Light Output: 175W/250W/330W (factory default 205W); Color temperature (selectable by 3000K, 4000K and 5000K)

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP65 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements; DLC Product Code: P9D60G7J

Constant Current, Class 2, 120-277V, 50/60Hz,120V: 2.79A, 208V: 1.80A, 240V: 1.60A, 277V: 1.21A

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

15.36% at 120V, 15.36% at 277V

99.8% at 120V, 96.9% at 277V

120-277V Twistlock photocell included. Photocell is compatible with 120-277V.

All values are typical (tolerance +/- 10%)

Shorting Cap for Twistlock Receptacle

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Long-life, high-efficacy, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Precision die-cast aluminum

Slipfitter with 180° pivot available for mounting on 2 3/8" tenon

Tempered glass

Polycarbonate

Rotates in 6 degree increments

EPA = 1.7

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

NEMA Beam Spread 7H x 6V

Equivalent to 1,000W Metal Halide
