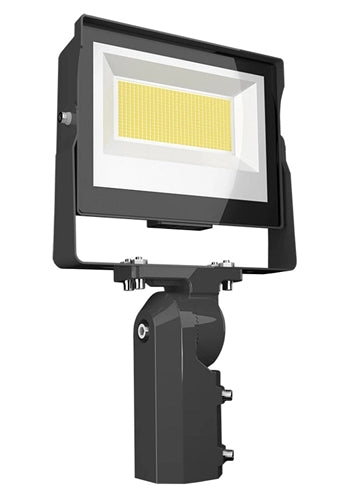

RAB X17XFU80SF 80W LED Floodlight, 5,356 Lumens, 120-277V, 3000K, 4000K and 5000K Color Temperature, 80 CRI, Bronze
RAB X17XFU80SF 80W LED Floodlight, 5,356 Lumens, 120-277V, 3000K, 4000K and 5000K Color Temperature, 80 CRI, Bronze
Regular price
Price:
$213.52
Regular price
Price:
Sale price
$213.52
Unit price
per
MODEL: RAB-X17XFU80SF
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
Field Adjustability
3-Way Field AdjustableField Adjustable Light Output:
40W/60W/80W (factory default 80W)
Color temperature (selectable by 3000K, 4000K and 5000K)
3-Way Field AdjustableField Adjustable Light Output:
40W/60W/80W (factory default 80W)
Color temperature (selectable by 3000K, 4000K and 5000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PLTHPHCP1VH8
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz,120V: 0.80A, 208V: 0.50A, 240V: 0.40A, 277V: 0.35A
Dimming Driver
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD 3.46% at 120V, 11.53% at 277V
Power Factor 99.6% at 120V, 93.3% at 277V
Photocell
120-277V selectable photocell that can be turned on and off.
All values are typical (tolerance +/- 10%)
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
IP Rating
Ingress protection rating of IP65 for dust and water
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Precision die-cast aluminum
Mounting
Slipfitter with 180° pivot available for mounting on 2 3/8" tenon
Tilt Increment
Rotates in 6 degree increments
Effective Projected Area
EPA = 0.79
Lens
Tempered glass
Reflector
Polycarbonate
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Optical
NEMA Type
NEMA Beam Spread of 7H x 7V
Other
Shorting Cap
Shorting Cap for Twistlock Receptacle
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PLTHPHCP1VH8
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz,120V: 0.80A, 208V: 0.50A, 240V: 0.40A, 277V: 0.35A
Dimming Driver
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD 3.46% at 120V, 11.53% at 277V
Power Factor 99.6% at 120V, 93.3% at 277V
Photocell
120-277V selectable photocell that can be turned on and off.
All values are typical (tolerance +/- 10%)
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
IP Rating
Ingress protection rating of IP65 for dust and water
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Precision die-cast aluminum
Mounting
Slipfitter with 180° pivot available for mounting on 2 3/8" tenon
Tilt Increment
Rotates in 6 degree increments
Effective Projected Area
EPA = 0.79
Lens
Tempered glass
Reflector
Polycarbonate
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Optical
NEMA Type
NEMA Beam Spread of 7H x 7V
Other
Shorting Cap
Shorting Cap for Twistlock Receptacle
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
