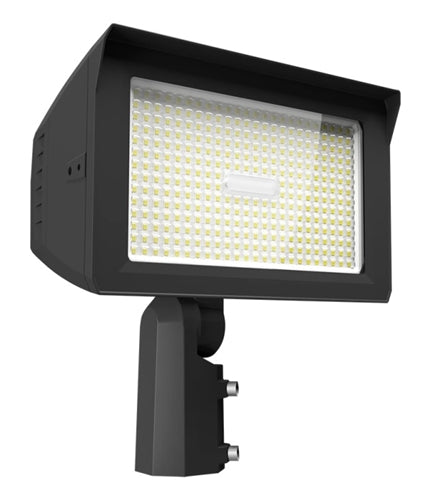

RAB X22-150 70-150W LED Floodlight, 10584-22797 Lumens, 120-277V, 3000K, 4000K and 5000K Color Temperature, 80 CRI, Bronze
RAB X22-150 70-150W LED Floodlight, 10584-22797 Lumens, 120-277V, 3000K, 4000K and 5000K Color Temperature, 80 CRI, Bronze
Regular price
Price:
$341.00
Regular price
Price:
Sale price
$341.00
Unit price
per
MODEL: RAB-X22-150
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
| Field Adjustability | |
|
Optical Field
Adjustability
|
90°, 75° and 55°
|
|
Field Adjustable Light
Output:
|
150W/125W/100W/75W (factory default 150W) |
| Color Temperature Selectable: | 3000K, 4000K and 5000K (factory default 4000K) |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating
of IP65 for dust and water
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
|
Electrical
|
|
|
Driver
|
150W: Class 1, Constant
Current, 120-277V, 50/60 Hz,
|
| 120V: 1.20A, 208V: 0.71A, 240V: 0.62A, 277V: 0.56A | |
|
Driver
|
125W: Class 1, Constant Current, 120-277V, 50/60 Hz, |
| 120V: 1.01A, 208V: 0.60A, 240V: 0.53A, 277V: 0.47A | |
|
Driver
|
100W: Class 1, Constant Current, 120-277V, 50/60 Hz, |
| 120V: 0.83A, 208V: 0.49A, 240V: 0.43A, 277V: 0.39A | |
|
Driver
|
75W: Class 1, Constant Current, 120-277V, 50/60 Hz, |
| 120V: 0.69A, 208V: 0.37A, 240V: 0.34A, 277V: 0.31A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
7.14% at 120V, 4.58% at
277V
|
|
Power Factor
|
93% at 120V, 99.7% at
277V
|
|
Surge Protection
|
L/N-PE: 6kV, L-N: 6kV
|
|
Photocell
|
Integrated photocell
included with on/off switch
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Color Consistency
|
3000K & 5000K: 5-step
MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
|
| 4000K: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color | |
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Performance Data
|
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -30°C (-22°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
50°C (122°F)
|
|
Housing
|
Die-cast aluminum
|
|

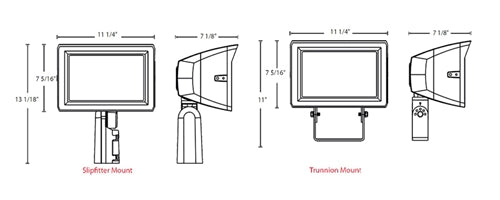

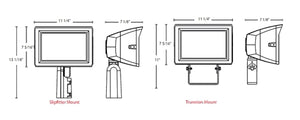

Mounting
|
Slipfitter with tilt
angle in 10° increments. Trunnion kit is included.
|
|
Tilt Increment
|
Rotates in 6 degree
increments
|
|
Lens
|
Tempered glass
|
|
Effective Projected Area
|
1 Fixture: 0.432 ft²
|
| 2 Fixtures at 90°: 1.093 ft² | |
| 2 Fixtures at 180°: 0.865 ft² | |
| 3 Fixtures at 90°: 1.525 ft² | |
| 4 Fixtures at 90°: 1.525 ft² | |
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Other
|
|
|
Note
|
All values are typical
(tolerance +/- 10%)
|
|
5 Yr Limited Warranty
|
The RAB 5-year
|
