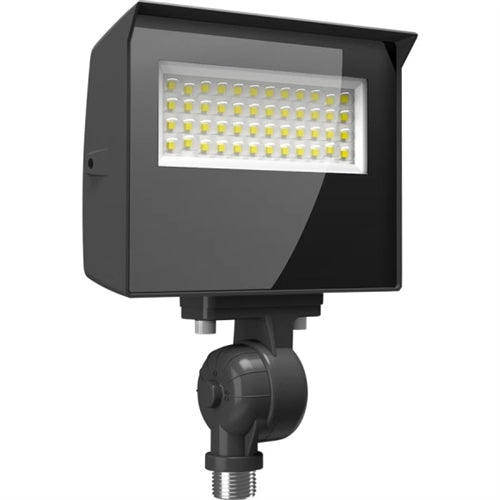

RAB X22-20 10-20W LED Floodlight, 1310-3120 Lumens, 120-277V, 3000K, 4000K and 5000K Color Temperature, 80 CRI, Bronze
RAB X22-20 10-20W LED Floodlight, 1310-3120 Lumens, 120-277V, 3000K, 4000K and 5000K Color Temperature, 80 CRI, Bronze
Regular price
Price:
$58.90
Regular price
Price:
Sale price
$58.90
Unit price
per
MODEL: RAB-X22-20
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
| Field Adjustability | |
|
Optical Field
Adjustability
|
90°, 75° and 55°
|
|
Field Adjustable
|
|
|
Field Adjustable Light
Output:
|
20W/17W/13W/10W (factory default 20W) |
| Color Temperature Selectable: | 3000K, 4000K and 5000K (factory default 4000K) |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating
of IP65 for dust and water
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
|
DLC Listed
|
DLC Product Code: S-GIVJ85 |
|
Electrical
|
|
|
Driver
|
20W: Class 1, Constant
Current, 120-277V, 50/60 Hz,
|
|
|
120V: 0.17A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A |
|
|
17W: Class 1, Constant Current, 120-277V, 50/60 Hz, |
| 120V: 0.14A, 208V: 0.08A, 240V: 0.07A, 277V: 0.07A | |
| 13W: Class 1, Constant Current, 120-277V, 50/60 Hz, | |
| 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A | |
| 10W: Class 1, Constant Current, 120-277V, 50/60 Hz, | |
| 120V: 0.09A, 208V: 0.05A, 240V: 0.05A, 277V: 0.04A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
6.46% at 120V, 9.48% at
277V
|
|
Power Factor
|
91.9% at 120V, 99.1% at
277V
|
|
Surge Protection
|
L/N-PE: 2.5kV, L-N: 2.5kV
|
|
Photocell
|
Integrated photocell
included with on/off switch
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Color Consistency
|
3000K & 5000K: 5-step
MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
|
|
Color Consistency
|
4000K: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -30°C (-22°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
50°C (122°F)
|
|
Housing
|
Die-cast aluminum
|
|

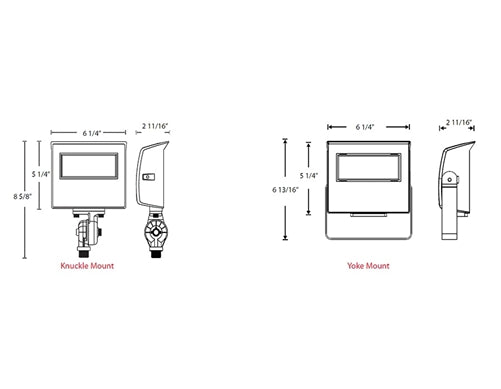

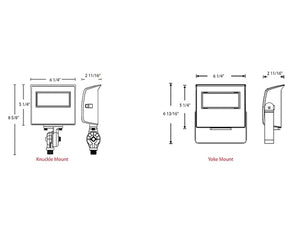

Mounting
|
Robust knuckle mount with
180° adjustable swivel arm. Tilt angle in 10° increments. Yoke kit is
included.
|
|
Lens
|
Tempered glass
|
|
Effective Projected Area
|
1 Fixture: 0.117 ft²
|
|
|
2 Fixtures at 90°: 0.256 ft² |
| 2 Fixtures at 180°: 0.234 ft² | |
| 3 Fixtures at 90°: 0.373 ft² | |
| 4 Fixtures at 90°: 0.373 ft² | |
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Other
|
|
|
Note
|
All values are typical
(tolerance +/- 10%)
|
|
|
5 Yr Limited Warranty
|
