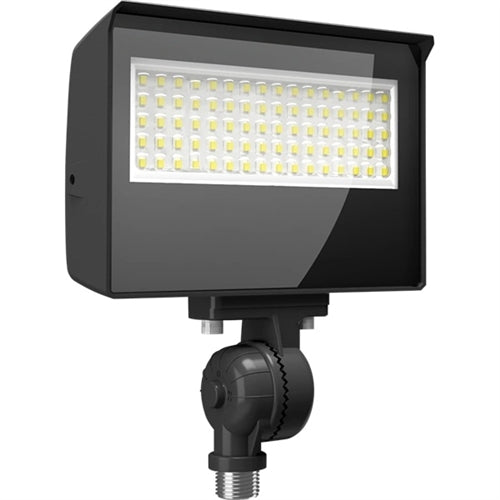

RAB X22-35 35/30/25/20W LED Floodlight, Selectable CCT 3000/4000/5000K, 2832-5286 Lumens, Selectable Optical Field 90/75/55 Degrees

90°, 75° and 55°

Field Adjustable Light Output:

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP65 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

35W: Class 1, Constant Current, 120-277V, 50/60 Hz,

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

11.6% at 120V, 11.54% at 277V

98.8% at 120V, 92.3% at 277V

L/N-PE: 2.5 kV, L-N: 2.5 kV

Integrated photocell included with on/off switch

Long-life, high-efficacy, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

3000K & 5000K: 5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

The minimum starting temperature is -22°F (-30°C)

Suitable for use in up to 122°F (50°C)

Die-cast aluminum

Tempered glass

1 Fixture: 0.118 ft²

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

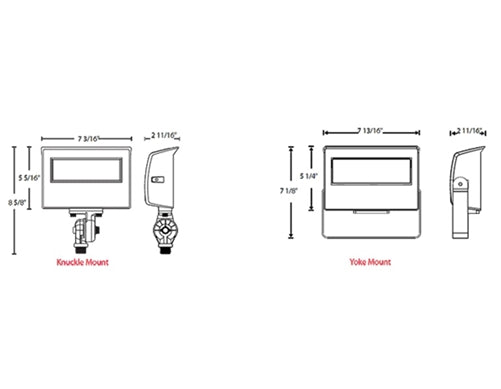

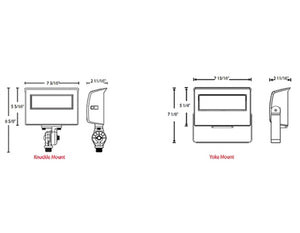

Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments. Yoke kit is included.

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
