Home > RAB Lighting > RAB X34-150LSF-830/U 130W LED Floodlight, 18000 Lumens, 3000K Color Temperature, 80CRI, Slipfitter 120-277V, Dimming, Bronze

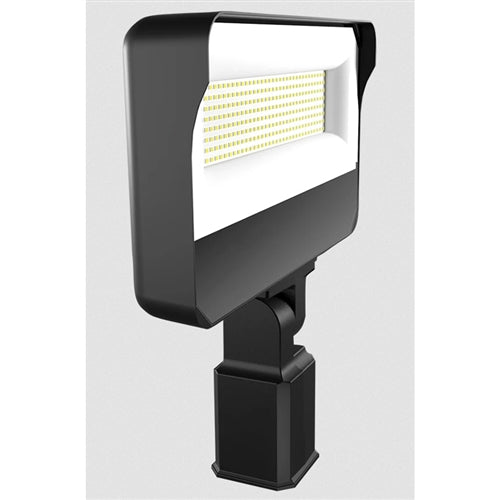

RAB X34-150LSF-830/U 130W LED Floodlight, 18000 Lumens, 3000K Color Temperature, 80CRI, Slipfitter 120-277V, Dimming, Bronze
RAB X34-150LSF-830/U 130W LED Floodlight, 18000 Lumens, 3000K Color Temperature, 80CRI, Slipfitter 120-277V, Dimming, Bronze
Regular price
Price:
$229.84
Regular price
Price:
Sale price
$229.84
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Compliance
Compliance
UL Listed:
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing:
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed:
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product
Code: PZTACHRP
Electrical
Driver:
Constant Current, 120-277V, 50/60 Hz, 120V: 1.1A, 208V: 0.6A, 240V: 0.6A, 277V: 0.5A
Dimming Driver:
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD:
5.2% at 120V, 8.3% at 277V
Power Factor:
99.7% at 120V, 96.1% at 277V
Note:
All values are typical (tolerance +/- 10%)
Optical
NEMA Type:
NEMA Beam Spread of 7H x 7V
LED Characteristics
LEDs:
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity:
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
IP Rating:
Ingress protection rating of IP65 for dust and water
EPA:
1.2
Cold Weather Starting:
Minimum starting temperature is -40°C (-40°F)
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing:
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed:
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product
Code: PZTACHRP
Electrical
Driver:
Constant Current, 120-277V, 50/60 Hz, 120V: 1.1A, 208V: 0.6A, 240V: 0.6A, 277V: 0.5A
Dimming Driver:
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD:
5.2% at 120V, 8.3% at 277V
Power Factor:
99.7% at 120V, 96.1% at 277V
Note:
All values are typical (tolerance +/- 10%)
Optical
NEMA Type:
NEMA Beam Spread of 7H x 7V
LED Characteristics
LEDs:
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity:
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
IP Rating:
Ingress protection rating of IP65 for dust and water
EPA:
1.2
Cold Weather Starting:
Minimum starting temperature is -40°C (-40°F)
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
