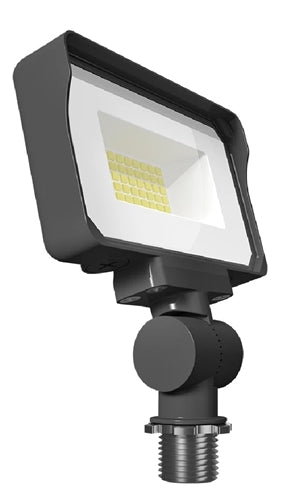

RAB X34XS 16/13/10W LED Floodlight, 1468-2353 Lumens, Knuckle Mount, 3000K/4000K/5000K Color Temperature, 120/277V, Bronze
RAB X34XS 16/13/10W LED Floodlight, 1468-2353 Lumens, Knuckle Mount, 3000K/4000K/5000K Color Temperature, 120/277V, Bronze
Regular price
Price:
$55.80
Regular price
Price:
Sale price
$55.80
Unit price
per
MODEL: RAB-X34XS
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 16W/13W/10W (factory default 16W) | |
| Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating
of IP65 for dust and water
|
|
Trade Agreements Act
Compliant
|
This product is a product
of Cambodia and a "designated country" end product that complies
with the Trade Agreements Act
|
|
DLC Listed
|
This product is on the
Design Lights Consortium (DLC) Qualified Products List and is eligible for
rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
|
| DLC Product Code: S-P1Q64R | |
|
Electrical
|
|
|
Driver
|
Constant Current, Class
1, 120/277V, 50/60 Hz
|
| 16W: 120V: 0.14A, 277V: 0.06A | |
| 13W: 120V: 0.12A, 277V: 0.05A | |
| 10W: 120V: 0.08A, 277V: 0.04A | |
|
THD
|
16W: 14.3% at 120V, 16.2%
at 277V
|
| 13W: 14.0% at 120V, 16.4% at 277V | |
| 10W: 14.6% at 120V, 14.8% at 277V | |
|
Power Factor
|
16W: 98.2% at 120V, 92.9%
at 277V
|
| 13W: 98.6% at 120V, 90.5% at 277V | |
| 10W: 98.3% at 120V, 87.8% at 277V | |
|
Surge Protection
|
2kV
|
|
Optical
|
|
|
NEMA Type
|
NEMA Beam Spread of 7H x
7V
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
16W: Replaces up to 70W
Metal Halide (MH) or 70W High Pressure Sodium (HPS)
|
| 13W: Replaces up to 70W Metal Halide (MH) or 50W High Pressure Sodium (HPS) | |
| 10W: Replaces up to 70W Metal Halide (MH) or 50W High Pressure Sodium (HPS) | |
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°C (-40°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Housing
|
Die-cast aluminum
|
|
Mounting
|
Knuckle mount
|
|
Lens
|
Glass
|
|
Reflector
|
Polycarbonate
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Other
|
|
|
Note
|
All values are typical
(tolerance +/- 10%)
|
|
5 Yr Limited Warranty
|
The RAB 5-year, limited
warranty covers light output, driver performance and paint finish. RAB's
warranty is subject to all terms and conditions found
at rablighting.com/warranty.5 Yr Limited Warranty
|
|
Buy American Act
Compliance
|
RAB values USA
manufacturing! Upon request, RAB may be able to manufacture this product to
be compliant with the Buy American Act (BAA). Please contact customer service
to request a quote for the product to be made BAA compliant.
|
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
